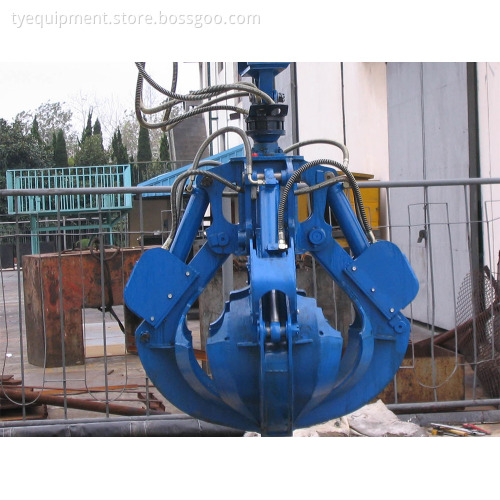

Hydraulic Orange Peel Grab

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Exceeding relevant national and international standards, the grab design and manufacture will also satisfy following qualifications.

i) Technology data:

Grab Type	6[0.8]1.7-00
Crane type	Excavator with 6 t or bigger SWL when in Max. reach
Grab SWL	4 t
Grab dead weight	1.7 t
Grab volume	0.8 m³
Cargo density	<3.5 t/m³
Cargo type	Scrap
Dispose angle	30⁰
Closing time	~5s
Opening time	~3s
Working Pressure	20MPa

ii) Structure description:

Ø Grab and crane connection: The grab has two eye plates and one pin, which can connect directly to Excavator.

Ø There are two pipe connections on the grab, which can connect with pipe connections from Excavator.

Ø All pivot joints have standard lubrication grease nipples, well protected from damage. Grease nipple type: stainless steel type PT1/4.

iii) Material description:

Ø Grab head: Q345B.

Ø Peel:

Teeth: ZG20SiMn.

Other parts of peels: Q345B

Ø Pins: 42CrMo heat treated, hardness of about HB250-280. The heat treatment report is provided.

Ø Cylinder bearing: Joint bearing.

Ø Center bushes: ZGMn13.

Ø Bolts: High strength metric bolt with anti-rust treatment. All bolts smaller than M10 are stainless steel.

Ø Anti-abrasion hydraulic oil is added fully when grab delivered.

Ø Grab hydraulic and remote system parts list:
