pole door cutting machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50sets/year
Supply Ability:	50sets/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR
Certificate:	CE
Transportation:	Ocean
Port:	Shanghai

Product Description

Application:

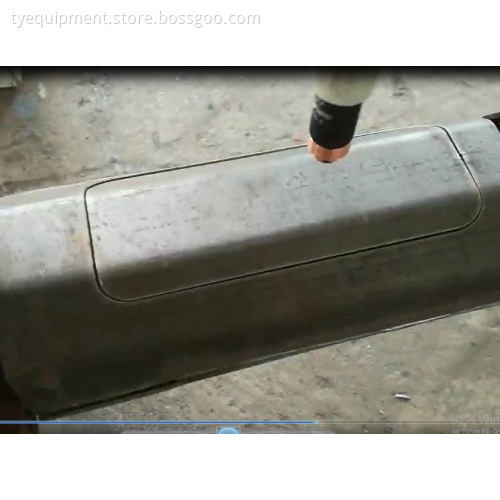

It is suitable for conical pole, round pole, octagonal light pole door CNC cutting, The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.

The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better then flame cutting. Due to the use of the U.S.-made Hypertherm plasma power supply and torch, the cutting gap is relatively small, and the cut pieces are generally used as door covers.

The pole material can be steel or Aluminum.

Main parameter:

No.	Item		Parameter
1	Pole material		Steel, Aluminum
2	Max. cutting length, X axis		2000mm (for once stroke cutting)
3	Rotation angle, A axis		Any angle 0~360 degree
4	Min pipe outer diameter		80
5	Max pipe outer diameter		350(or according requirement)
6	Plasma source	Standard	Hypertherm Powermax 45 Suitable max. thickness:6mm (Made in USA)
		Option	Hypertherm Powermax 65 Suitable max. thickness:10mm (Made in USA)
7	Max thickness for making hole and quality cutting.		Base on Plasma source The up standard and option
8	Max plasma edge cutting thickness（manual holding way）		Base on Plasma source As 20mm for powermax65
9	Max.cutting speed		Base on Plasma source (for one normal light pole electrical door, the cutting time is about 30~40 seconds)
10	Main motor/Brand		Stepless motor/Chinese，
11	CNC system		Si Dafeng(SF-2100S)
12	Nesting SOFTWARE		SmartNest
13	Control axis		2 axis, X,A，X,A
14	CNC Plasma cutting torch		1 set
15	Arc voltage height controller		HEAVTH HP105
16	height DEVICE		Plasma Torch height moving device， 1set
17	Environmental temperature		0-45℃
18	Humidity		<90%, no condensation
19	Surroundings		Ventilation, no big shake，
20	Input voltage (Can be made according to buyer’s country voltage requirement.)		Single phase,220V, 50HZ Three phases, 380V, 50HZ
