Product Description

1. Main Technology Parameter:

SN

Model

Value

Unit

1

Seam Length

≤12000

MM

2

Max Seam Thickness

5

MM

3

Host Header Size (L*W*H)

1500*480*1645

MM

4

Worktable Size (L*W*H)

13500*400*480

MM

5

Max Seam Diameter

Φ320

MM

6

Min Seam Diameter

Φ60

MM

7

Welding Current

630

A

8

Walking Device Motor

Model

YCT160-4B

3KW

9

Oil Pump Motor

Model

Y2100l2-4

3 KW

10

Recovery Motor

Model

Y90l-2

2.2 KW

11

Gear Pump

Model

CBN-E306

25ML/R

12

Max Pressure System

20

MPA

13

System Working Pressure

≤5

MPA

14

Machine Size

L

29000

MM

W

1600

MM

H

1650

MM

15

5000

KG

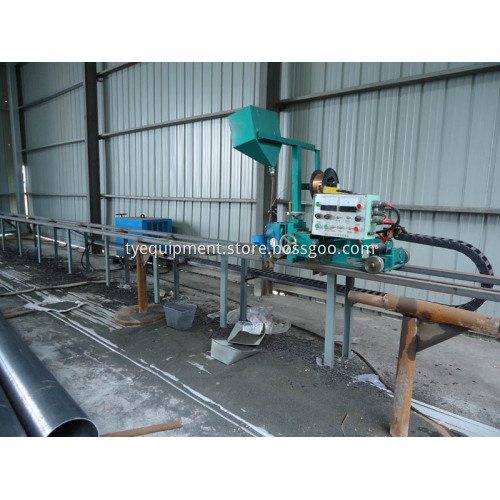

2. Photo

3. This Machine Composed By Main Machine Head, Tractive Body And Feeding Shelf. Tractive Body Was Moved By Collet In Small Vehicle Nipping The Steel Pole’s Collet. When The Small Vehicle Moved, Driven Steel Pole, From Small Collet To Big Collet, Regularity Moved. The Big Side Of The Steel Pole Was Hold By Feeding Vehicle, Force Automatic Sewing From Head Of Machine To Steerable Wheel. At One Time, The Welding Machine Starts Welding. This Machine Adopt Multiple Wire Submerged Arc Welding, Solder Was Reclaimed Automatic. Welding Line Was Symmetrical And Slinky. It Has Strong Filter, Forming One Time, And Be With High Welding Efficiency. The Speed Of Welding Achieve 2 To 3 Meters Per Minutes, Is About 3 Times Of The Gas Welding .The Cost Of The Welding Is Lower Than Gas Welding. It Is With Speedy Welding, High Efficiency, And Lowest Price In China Light Poles Industry Now.

4. Welding Light Pole, High Light Pole, Power Pole Body

5. Main Spare Parts Supplier

SN

Name

Spec.

Qty

Supplier

1

Gear Pump

25 Above Displacement

1set

Huaiyin

2

Gear Pump Motor

3KW

1ste

Siemens Beide

3

Bencher

3KW

1set

Siemens Beide

4

Reducer

Bwd220

1set

Dajiang

5

Sealing

Full Sets

1set

Import From Japan

6

Electric Components

1set

Schneider

7

Hydraulic Oil

46# Anti-Wear Hydraulic Oil

1barrel

Shanghai

(Charged By User)

8

Bearings

1set

Harbin

9

Hydraulic Valve Stack

Dedicated System

1set

Home Made

10

Cylinder

Special Cylinder

1set

Home Made

11

Submerged Arc Welding Machine

630A

1set

Shanghai

12

Wire Feeding

1set

Shanghai

13

Recycling Machine

1set

Wuxi

14

Line Panel

1pcs

Home Made
