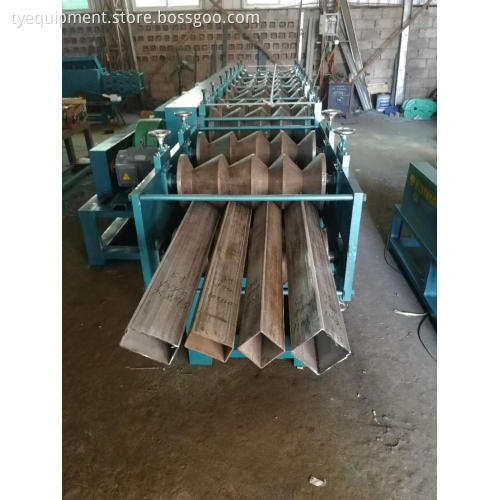

Round Pipe Into Square Pipe Forming Line-Off Line

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50set
Supply Ability:	50set
Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Shanghai

Product Description

Main motor power: 11kw (2 units)
Reducer: 350 type (2 units)
Feed material: 316 stainless steel tube
Forming passes: 8 forming + upper 2 passes and lower 3 straightening
Feeding pipe thickness: 2.0mm-4.0mm
Feeding pipe diameter: φ59mm/φ60mm/φ74mm/φ74mm/φ89mm/φ101mm
Working speed: 8-10m/min
Roller material: Gr12 die steel heat treatment after finishing
Spindle diameter: φ80mm
Spindle material: 40Cr quenched and tempered after finishing
Bearing model: dual bearing configuration (cylindrical roller bearing NJ314 and ball bearing 6314)
Transmission mode: gear transmission (heat treatment after finishing)
