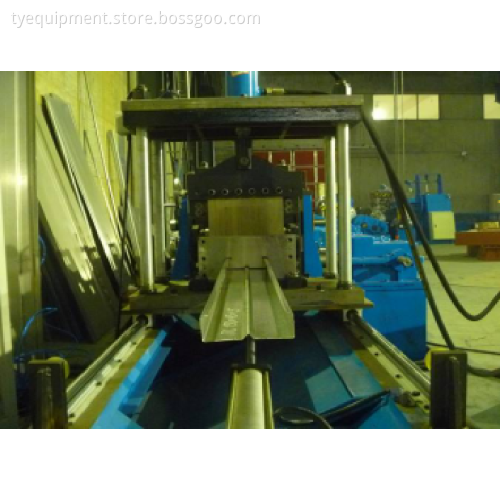

Multi-beam purlin forming line

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10Set/Year
Supply Ability:	10Set/Year
Payment Type:	T/T
Incoterm:	FOB
Certificate:	CE
Transportation:	Ocean
Port:	Shanghai

Product Description

The line is used to continuously make PU-cored sandwich panels with the facing layers of
steel or aluminum sheet or PU-cored roof sandwich panels with one side of color steel and
the other side of flexible sheet. It is also able to make panels of different profiles if the rollforming

machine is changed.

Main technical parameters

Specification of the panel 700~1200mm (width)
50~200mm (thickness)
Length to be custom-made
Production speed 3~8m/min
Length of belt laminator 24m
Max temperature of hot-air circulation 7 0℃
Dimensions of the line about 97000×7,000×3,800mm(L×W×H)
Total electrical capacity about 213kw
Power of hot-air furnace 200000 kcal.
