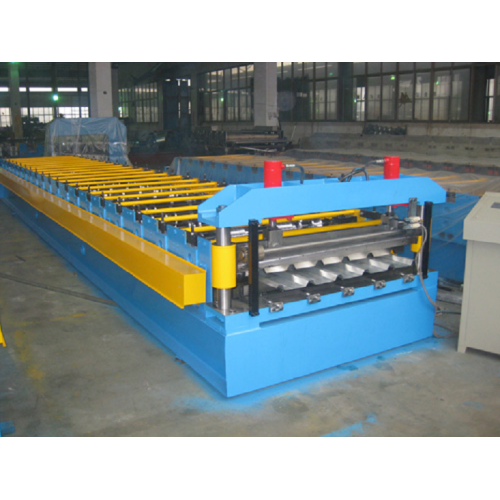

Deck Floor Roll Forming Machine

A, Main Technical Parameter:

1. Roll form material specification: 1250mm x (T 0.5-1.0mm) x L, Yield strength: 250Mpa max.

2. Roll forming speed: 12m/min.

3. Main shaft material: 45# steel, Q&T treatment

4. Main axis diameter: ￠75mm

5. Roller material: bearing steel, surface coated with chrome

6. Roller groups: 25 groups

7. Main motor power: 30KW

8. Hydraulic motor power: 5.5KW

9. Electrical control system: Whole line adopted PLC control, Panasonic PLC, Panasonic Touch Screen, Panasonic transducer.

10. Cutting method: Hydraulic powered, automatically cut to length after roll forming

11. Cutting mold material: Cr12 quenching treatment

12. Uncoiling: by 5T Manual uncoiler

B, Main structure

 DECK FLOOR ROLL FORMING LINE consist of 5T manual uncoiler, main drive, roll former, cutting equipment, PLC control system, output table.

C, Processing flow chart

Uncoiling – in feed guiding – roll forming – cutting off – out put product

D, products lateral profiles

E, Whole line layout
