015 new design 80w high quality low price IP65 led street l
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

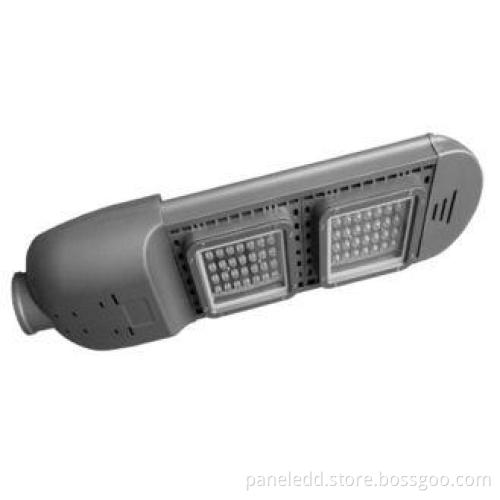

2015 new design 80w high quality low price IP65 led street light With Die Casting
Housing
- Cast aluminum housing.
- Functional design incorporates heat sink to ensure maximum heat transfer and long LED life.
- Meets 2G vibration standards per ANSI C136.32-2001.
LED & Optical Assembly
- Structured LED arrays for optimized photometric patterns.
- Refractors designed to optimize application efficiency.
- Utilizes high brightness LEDs, 75 CRI at 6000K.
- LM-79 tests and reports are performed in accordance with IESNA standards.
Lumen Maintenance
- System rating is 50,000 hours at L70.
Ratings
- CE,ETL pending, suitable for wet locations.
- IP65 rated optical and electrical enclosure per ANSI C136.25-2009.
- Temperature rated at -40° to 50°C.
- Contains no lead or mercury.
Finish
- Corrosion resistant polyester powder painted, minimum 2.0 mil. thickness.
- Standard color: Gray & Silver.
- Additional colors available with minimum order quantities and extended lead times.
Warranty
- 3-5 year limited system warranty standard.
|
Specification |
|
|
Power: |
80w |
|
Material: |
Die-casting aluminum housing + PC lens |
|
Type Of Chip: |
power LED |
|
Brand Of Chip: |
CREE |
|
Luminous: |
7500-8000 LM |
|
Color Temperature: |
2700 ~ 6500K |
|
CRI: |
Ra ≥ 75 |
|
Beam Angle: |
x140° ~ y70° |
|
Total Harmonic Distortion(THD): |
<20% |
|
PF: |
>0.95 |
|
Working Life: |
≥ 50000 hrs |
|
Warranty: |
2 years |
|
Dimensions |
|
|
Finishing Color: |
Black;Gray |
|
Wire connection: |
L(Brown);N(Blue);G(Green/Yellow) |
|
SHAPE: |
Rectangle |
|
Weight: |
6 Kg |
|
Size: |
560*202*105mm |
|
Diameter of socket: |
40-60mm |
|
Package Size: |
box size: 580*420*450mm 6pcs/carton; CBM:0.11m³ |
|
Work Environment |
|
|
Input Voltage: |
AC90-265V,50-60Hz |
|
Operating Temperature: |
-40~ + 70°C |
|
Application |
|
|
Application: |
Used for highway, main road,Square, Industrial roads, |
|
Recommend mounting height: |
7m-9m |
|
Recommend pole Distance: |
18m-25m |
