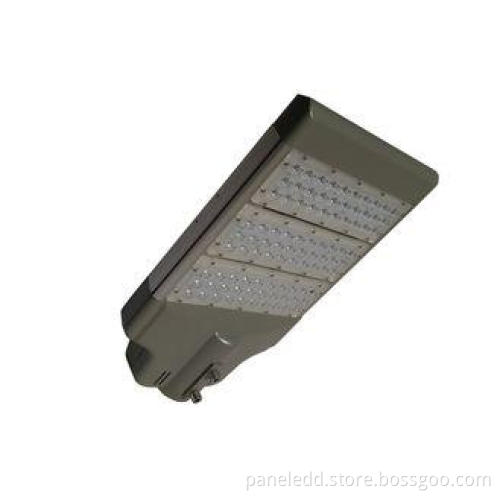

Free sample for 150W CE Rohs Approved led street light with CREE LED & 3 Years Warranty, 6036 aluminum heat sink
Product Features:
CREE LED, high luminous efficiency and long life.
High efficiency LED Driver, the wide range of input voltage AC100-277V;
Self-cleaning, down-
Self-cleaning,down-roof patented design, better heat dissipation, LED Tj < 85℃
Excellent optical design, greatly improve the light utilization and evenness.
Product Applications:
UL listed LED Street Light series can be widely used in Main street roads, Urban roads, Parking lot, Sidewalks, Squares, parks, schools, gardens etc.
Structure Features:
Shell materials: 6063 Aluminum.
Self-cleaning profile
Grey / Silver White color housing
Net weight:7.0 Kg
Dimension: 440*281*122mm
|
Specification |
|
|
Power: |
150w |
|
Material: |
6063 aluminum alloy housing + PC lens |
|
Type Of Chip: |
power LED |
|
Brand Of Chip: |
CREE |
|
Luminous: |
14000-15000 LM |
|
Color Temperature: |
2700 ~ 6500K |
|
CRI: |
Ra ≥ 75 |
|
Beam Angle: |
x140° ~ y70° |
|
Total Harmonic Distortion(THD): |
<20% |
|
PF: |
>0.95 |
|
Working Life: |
≥ 50000 hrs |
|
Warranty: |
3years |
|
Dimensions |
|
|
Finishing Color: |
Black;Gray |
|
Wire connection: |
L(Brown);N(Blue);G(Green/Yellow) |
|
SHAPE: |
Rectangle |
|
Weight: |
7 Kg |
|
Size: |
440*281*122mm |
|
Diameter of socket: |
50-60mm |
|
Package Size: |
box size: 500*350*120mm |
|
Work Environment |
|
|
Input Voltage: |
AC90-295V/305v,50-60Hz |
|
Operating Temperature: |
-40~ + 70°C |
|
Application |
|
|
Application: |
Used for Main street roads, Urban roads, Parking lot, Sidewalks, Squares, parks, schools, gardens etc. |
|
Recommend mounting height: |
8m-10m |
|
Recommend pole Distance: |
30m-35m |
Installation Notes
1. Before installation, the unit should be checked for damage that might have occurred in transit. If any damage is found, do not install the product.
2. To avoid potential hazard, the replacement of external cables and wires should be processed by the factory, local representatives or the other qualified technician.
3. The input voltage should not exceed the operating voltage of the lamb, that ranging from 100V to 240V.
4. The installation and wiring connection should be carried out after turning the power off.
5. Please ensure the length of power cords satisfy the installation. Tensile force and shear stress should be prevented for cables and plugs. Do not kink cables. Output cables should be laid separately at a distance from the others.
After sale service
We product provide 3 years warranty, all freight for replacing parts/lamp at our side
1. If driver failed, we’ll send new driver
2. If LED failed, we’ll sent new LED moduale
3. Unclear reason, we will sent full new set
Why choose Bellaid?
1. 8 years focused on LED.
2. One-stop lighting solutions (lighting designing, lighting choosing, solar and wind power solution etc.)
3. OEM & ODM are optional.
4. Independent innovation, design, open mold, striking Bellaid characteristic.
5. R&D team: 10 engineers with 9 years LED street light design work experience.
