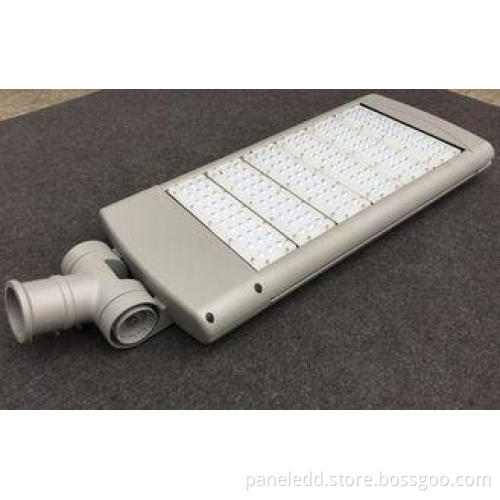

Free sample for 240W CE Rohs Approved led street light with CREE LED & 5 Years Warranty, 6036 aluminum heat sink
Feature:
CREE XT-E/XP-L Plug-and-Play Connector
·CREE/Bridgelux/Philips in the Available
·MEANWELL and INVENTRONICS Led Driver Available
·Patented E-Lens G2 angel-eyes optic, 93% Transmittance Rate
·Patented Multiple-LED Lens, 92% Transmittance Rate
·More than 10 different beam patterns to satisfy any kind of road requirements
·Patented Ribbon-Free Housting Technology
·10kv/20kv External Surge Protection Device
·Electrical Disconnector, Immediate, Automatic Disconnection of the Power Supply
· Nema Twist Photocell Receptacle Control Option
· Tool Free Opening Design, User Friendly, Easy Maintenance
· Solar Streetlights System Available
Specification sheet:
|
Specification |
|
|
Power: |
240w |
|
Material: |
6063 aluminum alloy housing + PC lens |
|
Type Of Chip: |
power LED |
|
Brand Of Chip: |
CREE |
|
Luminous: |
23000-23800 LM |
|
Color Temperature: |
2600 ~ 6500K |
|
CRI: |
Ra ≥ 75 |
|
Beam Angle: |
x145° ~ y70° |
|
Total Harmonic Distortion(THD): |
<20% |
|
PF: |
>0.95 |
|
Working Life: |
≥ 50000 hrs |
|
Warranty: |
3 years |
|
Dimensions |
|
|
Finishing Color: |
Black;Gray |
|
Wire connection: |
L(Brown);N(Blue);G(Green/Yellow) |
|
SHAPE: |
Rectangle |
|
Weight: |
12 Kg |
|
Size: |
784x335x80mm |
|
Diameter of socket: |
50-60mm |
|
Package Size: |
box size: 850*400*120mm |
|
Work Environment |
|
|
Input Voltage: |
AC90-305v,50-60Hz |
|
Operating Temperature: |
-40~ + 70°C |
|
Application |
|
|
Application: |
Used for Main street roads, Urban roads, Parking lot, |
|
Recommend mounting height: |
15m-18m |
|
Recommend pole Distance: |
45m-50m |
1) Over 10 year experience in clean energy line, business covering led street light, led tube, led bulb, led panel light and led downlight, etc;
2) Exporting for worldwide, with satisfied clients more than 50 countries
3) Competitive price, excellent service, integrated certificate system
Application:
■ Street lighting
■ Parking lots lighting
■ Squares
■ Factories
■ Parks
■ Sport fields
After sale service
We product provide 3 years warranty, all freight for replacing parts/lamp at our side
1. If driver failed, we’ll send new driver
2. If LED failed, we’ll sent new LED moduale
3. Unclear reason, we will sent full new set
Why choose Bellaid?
1. 8 years focused on LED.
2. One-stop lighting solutions (lighting designing, lighting choosing, solar and wind power solution etc.)
3. OEM & ODM are optional.
4. Independent innovation, design, open mold, striking Bellaid characteristic.
5. R&D team: 10 engineers with 9 years LED street light design work experience.
