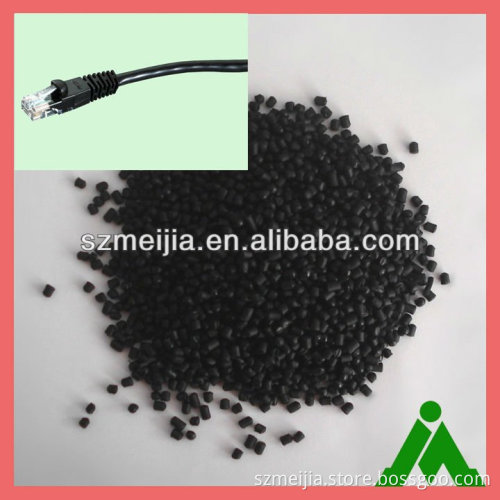

Extrude grade PVC compound for cable insulation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1. Eco (phthalate free)

2. Insulating property

3. High output

4. Customized formulation

5. 10 years experience

Technical data sheet

Test Items	Unit	Technical Requirements
Test Items	Unit	J-701	J-702	J-703
Tensile strength	MPa	≥15	≥15	≥15
Elongation at break	%	≥150	≥180	≥150
Oven aging condition	°C·h	100×168	100×168	100×168
Tensile strength	MPa	≥15	≥15	≥15
Variable rate of tensile strength	%	≤±20	≤±20	≤±20
Elongation at break	%	≥150	≥180	≥150
Variable rate of elongation at break	%	≤±20	≤±20	≤±20
Weight loss (100°C×168h)	g/m²	≤20	≤20	≤20
Low temperature brittleness	°C	-15	-20	-15
20°C Volume resistivity	Ω·m	≥1.0×10¹²	≥1.0×10¹¹	≥1.0×10¹²
Dielectric strength	MV/m	≥20	≥20	≥20
Oxygen index	%	-	-	≥30
Density	g/cm³	≤1.40	≤1.40	≤1.45
200°C Thermal stable time	min	≥60	≥60	≥60
Hot deformation	%	≤40	≤50	≤40
