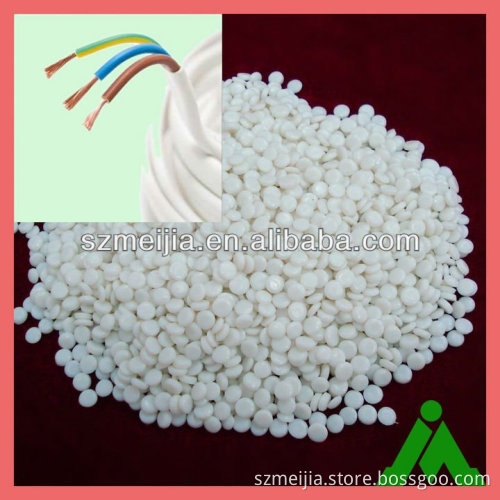

Wire/Cable PVC granules

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1. REACH, ROHS, PAHS, POHS, SONY00259

2. Good insulating property

3. Easily be processed

4. Perfect flame-retardant

Technical data sheet

Test Items	Unit	Technical Requirements
Test Items	Unit	J-701	J-702	J-703
Tensile strength	MPa	≥15	≥15	≥15
Elongation at break	%	≥150	≥180	≥150
Oven aging condition	°C·h	100×168	100×168	100×168
Tensile strength	MPa	≥15	≥15	≥15
Variable rate of tensile strength	%	≤±20	≤±20	≤±20
Elongation at break	%	≥150	≥180	≥150
Variable rate of elongation at break	%	≤±20	≤±20	≤±20
Weight loss (100°C×168h)	g/m²	≤20	≤20	≤20
Low temperature brittleness	°C	-15	-20	-15
20°C Volume resistivity	Ω·m	≥1.0×10¹²	≥1.0×10¹¹	≥1.0×10¹²
Dielectric strength	MV/m	≥20	≥20	≥20
Oxygen index	%	-	-	≥30
Density	g/cm³	≤1.40	≤1.40	≤1.45
200°C Thermal stable time	min	≥60	≥60	≥60
Hot deformation	%	≤40	≤50	≤40
