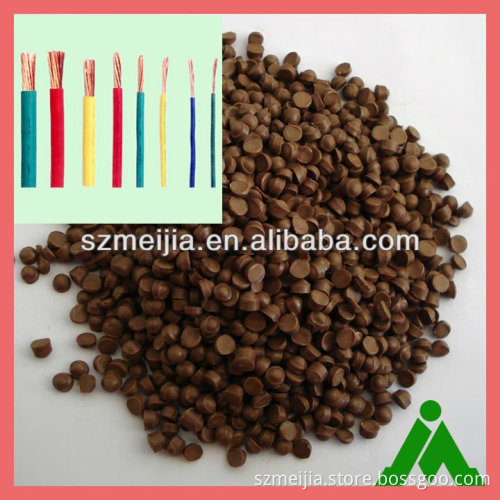

Flexible PVC pellets for insulations of wire/cable

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1. Eco-friendly

2. Well flame-retardant

3. Good insulating property

4. Easily processed

5. Permanent performances

Technical data sheet

Test Items		Unit	Technical Requirements
Test Items		Unit	TI 1	TI 2	TI 3	TI 4	TI 5
Tensile strength		MPa	12.5	10.0	15.0	12.5	10.0
Elongation at break		%	125	150	150	125	150
Oven aging condition		°C·h	80×168	80×168	135×336	80×168	80×168
Tensile strength after aging		MPa	12.5	10.0	15.0	12.5	10.0
Elongation after aging		%	125	150	150	125	150
Variable rate of tensile strength		%	≤20	≤20	≤25	≤20	≤20
Variable rate of elongation		%	≤20	≤20	≤25	≤20	≤20
Weight loss	Condition	°C·h	80×168	115×336	80×168	80×168	80×168
Weight loss	Weight loss	mg/cm²	≤2.0	≤2.0	≤1.5	≤2.0	≤2.0
Low temperature brittleness		°C	-15	-15	-	-40	-30
20°C Volume resistivity		Ω·m	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹	≥1.0x10¹¹
Dielectric strength		MV/m	≥25	≥25	≥25	≥25	≥25
200°C Thermal stable time		min	-	-	240	-	-
