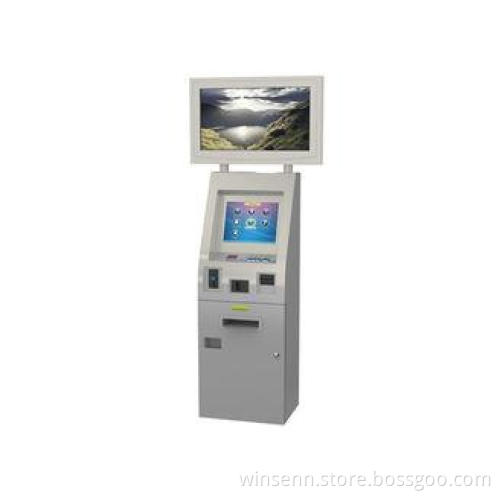

Semi Outdoor Card Payment Touch Screen Kiosk with 42 inch Avdertising LCD Display
Application
• Mall Airport Station Coin Bill Card Payment Kiosk ideal to be deployed for paying utility (water, electricity and gas) bill, TV bill, mobile phone bill, transportation bill, tax, and etc.
• Suitable to be placed at shopping malls, business buildings, schools, libraries, universities, airports and railway stations.
Mall Airport Station Coin Bill Card Payment Kiosk with 42 inch Avdertising LCD Configuration
• Regular or Industrial PC (specification may differ according to different applications), Industrial power supply.
• 15", 17", 19" or above TFT LCD with touch screen.
• Magnetic, smart or IC card reader
• Stainless steel encrypted pin pad, PCI certified.
• Thermal receipt printer with auto cut, 80mm paper width.
• 42 inch LCD advertising displayer system
• Built-in speakers 2*5W
• Steel enclosure, solid structure with door lock for inner components. Environment-protective paint finishing, various colors available.
• CE, FCC approval
Specifications:
|
Steel Body |
1. High quality steel material. 2. Solid structure with door lock for inner components. 3. Environment-protective paint finishing in various colors. 4. Optional wheels or wedge anchor securing onto the ground. |
|
Computer |
Industrial motherboard imported from Taiwan, dual core CPU, RAM 1G, HDD 500G |
|
42 inch LCD for advertising |
1. Display Type: 42 inch Active Matrix TFT LCD 2. Resolution: 1920 x 1080 3. Brightness: 400 cd/m2 4. Colors: 16.7 million 5. Response Time: 5 ms 6. JPEG/MPEG1/MPEG2/MPEG3/MPEG4 formats supported 7. CF card and USB supported 8. Play list functions supported 9. Circularly play supported 10. Weekly timing and timer for AUTO Power on/off operation 11. Remote control function |
|
Lower touch screen monitor |
1. Display Type: 17 inch Active Matrix TFT LCD 2. Resolution: 1280 x 1024 3. Brightness: 300 cd/m2 4. Colors: 16.7 million 5. Response Time: 5 ms 6. View angle: 160(horizontal); 160(vertical) 7. Touch Technology: Surface Acoustic Wave (SAW) 8. Touch Sensitivity: Fixed |
|
Bill acceptor |
Identify and receive bills of different countries, such as US Dollar, Euro, Ruble... |
|
Coin acceptor |
Identify and receive coins of different countries, such as US Dollar, Euro, Ruble... |
|
Card reader |
Read credit card |
|
Thermal printer |
1. 80mm paper width 2. Automatic cutter guaranteeing 1mm cuts 3. Patented anti-jamming and anti tear-off systems 4. Multi-position paper roll |
|
Built-in speakers |
2*3W |
|
Working Voltage |
100-240V, 50/60Hz |
|
Overall dimension |
550(W) X 420(D) X 2000(H) mm |
|
Net weight |
98kg |
|
Approval |
CE, FCC |
Other optional components that can be integrated in this payment kiosk to meet with your special requests.
1) OEM LOGO or LED light box.
2) DOT matrix invoice printer, 80mm paper width, auto cut.
3) A4 Laser Printer
4) Camera
5) Coin acceptor
6) Coin dispenser
7) Check acceptor
8) Passport reader
9) Signature pad
10) Barcode scanner
11) Card printer
12) Card dispenser
13) Metal keyboard with tracking ball
14) Telephone
15) Wireless modems (GSM/GRMS)
16) Bluetooth
17) UPS
18) Open door alarm system
Full services are offered according to your concept – design, sampling, mass production, shipment, and after sale service.
