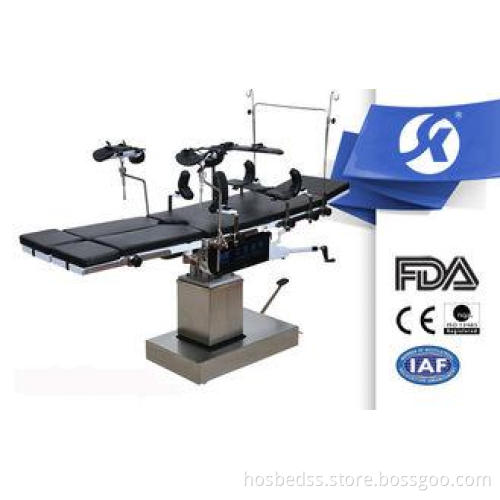

A3008B Hospital Equipment Surgical Operating Table With Leg Board And Foot Plate
Specifications:
1. Manually controlled operating table, working range from floor level: 800-1040mm.
2. Adjustable to all essential positions.
3. With movement controls at the head of the table.
4. Reinforced three section X-ray translucent top.
5. Table dimensions (excluding side rails): 480 W * 1900 L
6. Height adjustable by oip pump, foot step control.
8. Accessories: adjustable leg holders with canvas strap adjustable heel stirrup, chromate plated anaesthetist’s screen mattress with thickness 50 mm washable vinyl cover
Main Technical Parameters:
| Dimension | 2040*480*800-1040mm |
| Trendelenburg | ≥30° |
| Reversed Trendelenburg | ≥30° |
| Lateral Tilt | ≥20° |
| Head Section Raised from the Horizontal | ≥30° |
| Head Section Lowered from the Horizontal | ≥90° |
| Back Section Raised from the Horizontal | ≥75° |
| Back Section Lowered from the Horizontal | ≥8° |
| Leg Section Lowered from the Horizontal | ≥90° |
| Kidney Bridge Elevation | ≥120mm |
| Back Section Lowered from the Horizontal | ≥18° |
| Leg Section Lowered from the Horizontal | ≥90° |
| Waist bridge | ≥120mm |
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
* We don’t send parts out for pretreatment, all process would be supervised under inspection department
* 7 stages pretreatment meet international standard
* Baking at high temperature after power coating to ensurethe paint finish
Control from material:
* All bolts and screws are of SS material
* Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
* Plastic material is of ABS only. Durable and Sturdy. Atleast 10 years lifetime. Different colors for options.
Control from inspection:
* Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
* SGS third party inspection available if required
The Service We Provid - We Take Care Of Your Order
Punctual delivery time:
* We put your order into our tight production schedule, ensure your punctual delivery time.
* Production / inspection report before your order packed.
* Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
* We respect your feed back after receive the goods.
* We provide 12-24 months warranty after goods arrive.
* We promise all spare parts available in lifetime use.
Professional sales:
* We value every inquiry sent to us, ensure quick competitive offer.
* We cooperate with customer to bid tenders. Provide all necessory document.
* We are a sales team, with all techinical support from engineer team.
