30 T Type Geared Push Travel Trolley With Curved Tracks One
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CHINA |
|---|
Product Description
Product Description

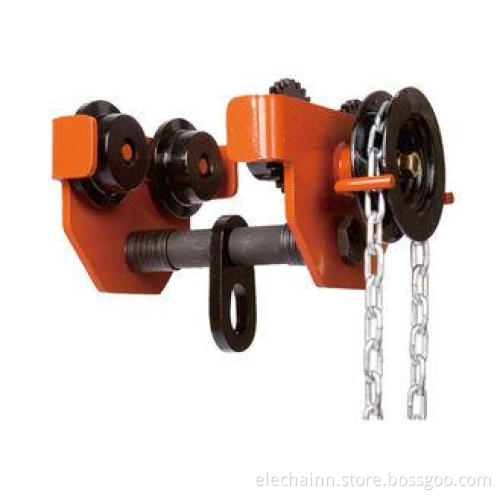

0.5T - 30T MANUAL GEARED TROLLEY
PRODUCT SUMMARY
This SEAGULL Manual Geared Trolley is ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work. Mount on wide-flange H-beams, standard I-beams, or curved tracks.
DESCRIPTION
* Capacity form 0.5T-30T.
* Wheels lubricated and equipped with bearings for long life.
* More thickness of the steel plates and strong shaft to ensure the good safety.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one.
* One year guarantee.
DESCRIPTION
| Model | Rated Load (T) |
Test Load (T) |
Chain Pull to Lift Full Load(N) |
Dimensions(mm) | I-Beam recommended |
Net Weight (kg) |
|||
| A | B | C | H | ||||||
| 0.5 | 0.5 | 0.75 | 60 | 248 | 196 | 190 | 108 | 68-126 | 9 |
| 1 | 1 | 1.5 | 80 | 280 | 236 | 211 | 115 | 80-146 | 13 |
| 2 | 2 | 3 | 140 | 318 | 273 | 236 | 130 | 80-168 | 18 |
| 3 | 3 | 4.5 | 150 | 340 | 320 | 295 | 164 | 88-168 | 25 |
| 5 | 5 | 7.5 | 170 | 365 | 366 | 334 | 177 | 100-170 | 39 |
| 10 | 10 | 15 | 320 | 410 | 389 | 460 | 237 | 122-203 | 70 |
| 20 | 20 | 30 | 340 | 475 | 798 | 575 | 300 | 122-203 | 186 |
| 30 | 30 | 37.5 | 352 | 392 | 625 | 551 | 260 | 150-250 | 245 |
