Product Description
Product Description

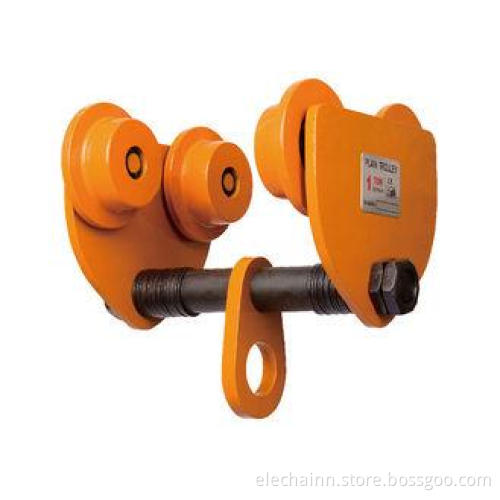

0.5T - 10T MANUAL PLAIN TROLLEY
PRODUCT SUMMARY
This SEAGULL Manual Geared Trolley is ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work. Mount on wide-flange H-beams, standard I-beams, or curved tracks.
DESCRIPTION
* Capacity from 0.5T-10T.
* Wheels lubricated and equipped with bearings for long life.
* More thickness of the steel plates and strong shaft to ensure the good safety.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one
* One year warranty.
KEY SPECS
| Model | Rated Load (T) |
Test Load (T) |
Dimensions(mm) | I-Beam recommended |
Net Weight (kg) |
|||
| A | B | C | H | |||||
| 0.5 | 0.5 | 0.75 | 208 | 172 | 190 | 108.5 | 75-125 | 5.5 |
| 1 | 1 | 1.5 | 220 | 206 | 222 | 122 | 75-125 | 8 |
| 1.5 | 1.5 | 2.25 | 260 | 231 | 238.5 | 130 | 100-150 | 13 |
| 2 | 2 | 3 | 260 | 240 | 267 | 132.5 | 100-150 | 14 |
| 3 | 3 | 4.5 | 285 | 279 | 319 | 181 | 100-150 | 21 |
| 5 | 5 | 7.5 | 338 | 318 | 384 | 219 | 125-175 | 35 |
| 10 | 10 | 15 | 362 | 380 | 490 | 275 | 125-180 | 66 |
