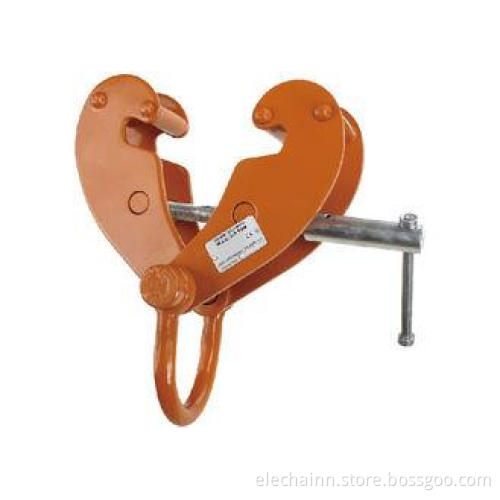

1T - 10T BEAM CLAMP MANUAL WITH SHACKLE
PRODUCT SUMMARY
Compact and easy to install with minimum headroom. Adjusts in seconds to fit a variety of girder widths. All-steel construction for long-lasting strength.
DESCRIPTION
1. High quality alloy steel with low carbon.
2. Load range:1-10t
3. Safey factor:1.5 times working load limit
4. With safe and secure grip on the beam.
5. Easy and simple to install.
6. Beam width range: available in various styles.
7. Forbidden overload.
KEY SPECS
| SAFT WORKING LOAD (t) |
ADJUSTABLE BEAM (mm) |
A | B | C | D | M | E | F | G | NET WEIGHT (kg) |
||
| MAX | MIN | MAX | MIN | MAX | ||||||||
| 1 | 70-245 | 270 | 183 | 375 | 144 | 66 | 84 | 210 | 102 | 165 | 91 | 4.5 |
| 2 | 70-245 | 270 | 183 | 375 | 144 | 74 | 84 | 210 | 102 | 165 | 91 | 5.5 |
| 3 | 70-355 | 365 | 240 | 520 | 210 | 103 | 125 | 258 | 135 | 225 | 108 | 11.5 |
| 5 | 70-355 | 365 | 240 | 520 | 210 | 111 | 125 | 258 | 135 | 225 | 108 | 15.51 |
| 10 | 80-350 | 365 | 250 | 520 | 270 | 120 | 161 | 280 | 160 | 230 | 176 | 26 |
