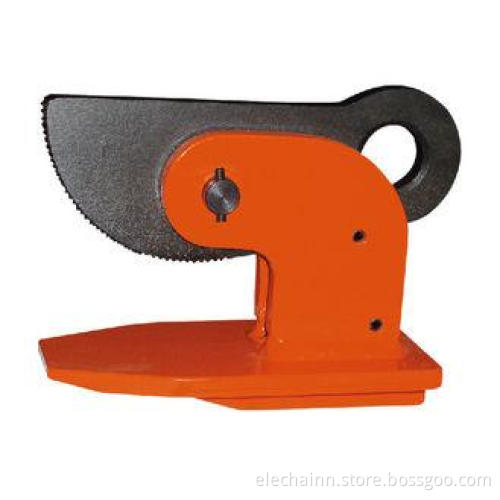

1.5T - 5T HORIZONTAL PLATE CLAMP
PRODUCT SUMMARY
Vertical plate clamp features pivoting bale for easier and more versatile operation. Not designed for use on stainless steel or aluminum plates. For use with materials with a
surface hardness to 30 RC (300 HB).
DESCRIPTION
• Pivoting bale for easier and more versatile operation
• Automatic serrated hardened steel cams and pads
• Drop-forged steel case for maximum strength
• Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result
• Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil
* Capacity form 0.75T to 5T.
* Forged head and forged gear set ensure the durability and safety.
* Gripper is HRC 52-57 for longlife use.
* More thickness of the steel plates to ensure the good safety.
* One year guarantee
KEY SPECS
| Model | DHQP-1.5 | DHQP-3 | DHQP-5 |
| Rated capacity(T) | 1.5 | 3 | 5 |
| Test load | 3 | 6 | 10 |
| Jaw opening(mm) | 0-50 | 0-50 | 0-60 |
| Net Weight(kg) | 4.3 | 6 | 12 |
