Transport Industrial Lifting Chains 850kn For Building , Wh
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CHINA |
|---|
Product Description
Product Description

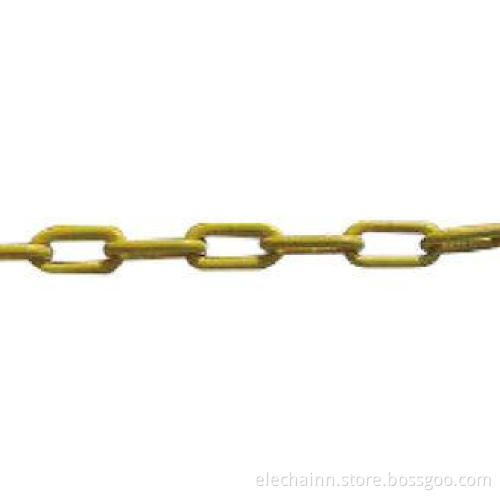

850KN LASHING CHAIN FOR INDUSTRIAL LIFTING CHAIN
KEY SPECS
| KINDS | SHORT LINK CHAIN | ||||
| DIAMETER (mm) | 7 | 10 | 13 | 16 | 19 |
| DIAMETER PITCH (mm) | 21 | 30 | 39 | 48 | 57 |
| INSIDE WIDTH (mm) | 10 | 14 | 18.1 | 22.4 | 27.8 |
| OUTSIDE WIDTH (mm) | 25.5 | 36 | 47.1 | 57.4 | 68.8 |
| WEIGHT (kg/m) | 1.1 | 2.2 | 3.8 | 5.7 | 8 |
| BREAKING LOAD (Kn) | 61.5 | 125 | 212 | 320 | 450 |
| KINDS | MID LINK CHAIN | ||||||
| DIAMETER (mm) | 10 | 13 | 14 | 16 | 19 | 22 | 26 |
| DIAMETER PITCH (mm) | 40 | 52 | 50 | 64 | 76 | 86 | 92 |
| INSIDE WIDTH (mm) | 15 | 19.5 | 18.5 | 24 | 28.5 | 27 | 31 |
| OUTSIDE WIDTH (mm) | 37 | 48.5 | 49.5 | 59 | 69.5 | 74 | 86 |
| WEIGHT (kg/m) | 2 | 3.4 | 4.04 | 5.04 | 7.12 | 9.4 | 13.7 |
| BREAKING LOAD (Kn) | 61.5 | 212 | 246 | 320 | 450 | 608 | 850 |
| KINDS | LONG LINK CHAIN | ||||||
| DIAMETER (mm) | 7 | 9 | 11 | 13 | 16 | 19 | 22 |
| DIAMETER PITCH (mm) | 45 | 53 | 63 | 80 | 100 | 100 | 120 |
| INSIDE WIDTH (mm) | 10 | 15 | 18 | 22 | 26 | 27 | 37 |
| OUTSIDE WIDTH (mm) | 25.5 | 35 | 43 | 51 | 61 | 68 | 84 |
| WEIGHT (kg/m) | 0.83 | 1.4 | 2.18 | 2.97 | 4.44 | 6.5 | 8.76 |
| BREAKING LOAD (Kn) | 61.5 | 102 | 152 | 212 | 320 | 450 | 610 |
