Product Description

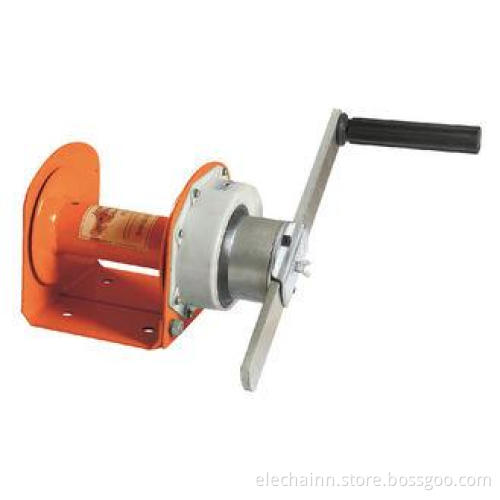

0.5 - 3T HAND WINCH

PRODUCT SUMMARY

Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released.

DESCRIPTION

1. It is small, light, easy to use fitted with the device of friction btaking.

2. It is a kind of light and handy flexible drawing tools, Suitable for automobile, ship mooring, trees, etc.'s drawing the homework.

KEY SPECS

Model		0.5 t	1 t	2 t	3 t
Safe Working Load (t)		0.5	1	2	3
Test load (Kn)		6.125	12.25	24.5	36.75
Adopted Wire Rope dia x length (mm)		Φ6.3x40	Φ8x40	Φ9x40	Φ12.5x40
Speed Ratio		4.33:1	12.19:1	22.68:1	29.16:1
The Max. Length of Link-pole action (mm)		350	350	350	350
Min. Force of Hand Turn (N)		120	120	130	180
Dimensions (mm)	A	Φ60	Φ76	Φ90	Φ100
	B	Φ140	Φ175	Φ190	Φ230
	C	150	154	195	205
	D	100	110	155	155
	E	Φ15	Φ18	Φ18	Φ18
	F	403	443	490	549
	H	182	214	230	296
	I	130	170	170	170
	J	245	266	300	365
Net weight(no wire rope) (kg)		14.4	19.7	25.1	44.3
