3000kg 3 Phase Electric Chain Hoist For Material Handling

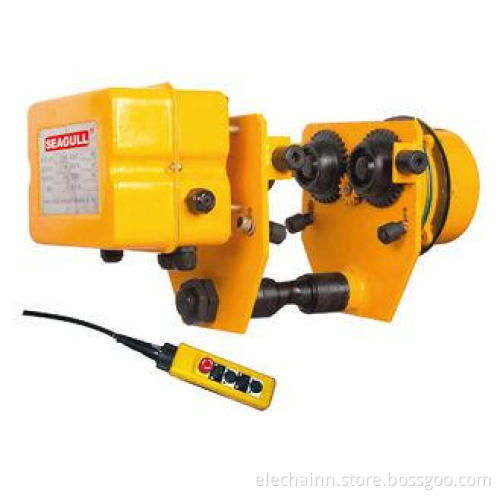

3000KG THREE PHASE ELECTRIC TROLLEY

PRODUCT SUMMARY
The SEAGULL® Electric Trolley can lift up to a 2000kg load. Mounts to fit 75mm to 180mm I-beams and wide flange beams.

DESCRIPTION

A. Capacity from 1000kg to 5000kg.
B. Quality chain is supplied by FEC JAPAN.
C. Compact and high efficient motor with heat protection device.
D. Most tensile safety hooks without break.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. Both single phase and three phase are available.
I. CE certified.
J. IP54 protection on electric hoist for dust and water proof protection.

1) With suspension hook. push, geared or electric trolley.
2) Standard lift height 3 m, control cable 3m
3) Operating voltage 110-440V , 50/60Hz.
4) Low voltage control 24V is standard.
5) High efficient energy-saving motor, asbestos free brake system.
6) Top and bottom hooks are fitted with safety latches as standard.
7) Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8) Solid chain bucket.
9) Super strong surface hardened chain.
10) Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
11) The unique friction clutch overload protection, which protects the unit from overloading.
12) High quality electric components with safety protection

KEY SPECS
