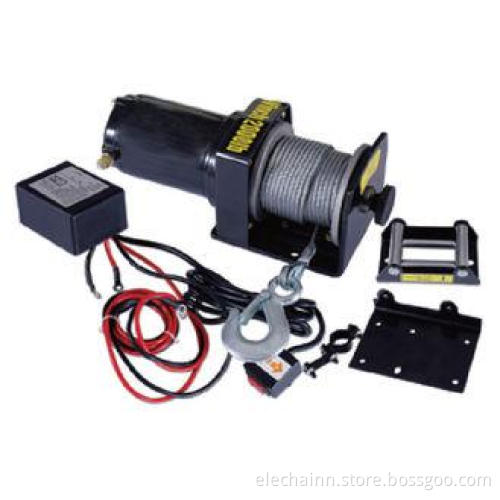

2000LB ELECTRIC ATV WINCH
PRODUCT SUMMARY
Features an all-metal planetary geartrain plus mechanical and dynamic braking. Frees pooling clutch with ergonomic control. Has sealed solenoids for all-weather protection. Sealed handlebar switch and 10-ft. remote. Includes roller fairlead and mounting plate.
DESCRIPTION
* Capacity from 0.5T-30T.
* Wheels lubricated and equipped with bearings for long life.
* More thickness of the steel plates and strong shaft to ensure the good safety.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one
* One year warranty.
KEY SPECS
| Model | H2000-1B(12V) |
| Rated line pull | 2000lb(907kg) single line |
| Motor | 0.7KW/0.9HP 12V,Permanent magnet |
| Gear reductions ratio | 153:01:00 |
| Drum Dimensions | Φ1.24"x2.88"(Φ31.5mmx73mm) |
| Cable (Dia X L) | Φ5/32"x49'(Φ4mmx15m) |
| Overall dimensions | 11.2"x4.1"x4.1"(285x105x105mm) |
| Mounting bolt pattern | 3.13"(79.5mm) |
| N.W. /G.W. | 16kg/17kg |
