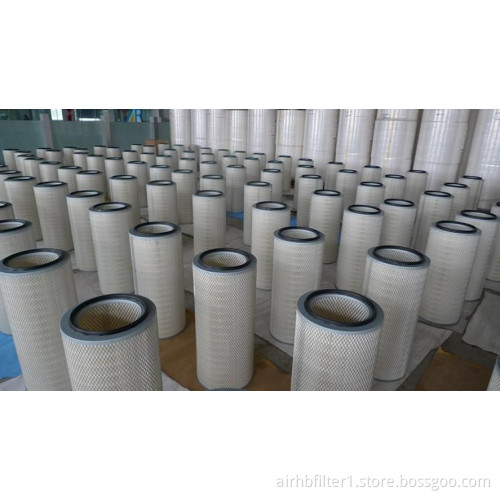

Polyester Pleated Filter Cartridge (AR-FJ)
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 30000 |
| Supply Ability: | 30000 |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | SGS, ISO9001 |
| Transportation: | Ocean,Air |
Product Description
Product Description
Product Description:
1. Imported specialized air filter/dust removal composite filter paper,high filtering efficiency
2. Wide pleat design, large filtering area
3. Anti-rust galvanized cap.
4. Galvanized keel with diamond mesh, higher rate of opening pinhole
5. Elastic neoprene gasket ring
6. Good moisture proof ability
Features:
1) Filter media: Cellulose/polyester blend, 100% cellulose or other blend materials
2) Source of media: USA, Finland, Korea or China
3) Great filter surface and airflow
4) Uniform pleat spacing is maintained
5) Cartridge with or without outer mesh available, construction without out mesh is good for agglomerative dust release
6) Hot melt spiral beading to maintain full filtering surface area
Construction:
A) Shape: Cylindrical
B) Top cap: Open steel plate, no rust
C) End cap: Open or closed steel plate, no rust
D) Filter surface: Various available
E) Inner core: Galvanized mesh
F) Outer core: Galvanized mesh or none
G) Gasket: Specialty rubber to ensure airtight sealing
Chemical resistance:
A) Hydrolysis resistance: Fair
B) Acid resistance: Fair
C) Alkaline resistance: Fair
D) Dust release: Good
E) Applicable temperature: 65oC
Both the size of the cartridge and the shape of the caps are available in various specifications. All configurations are changeable to meet the optimum performance of your applications. Please contact us directly for more technical information!
Inner packing: Poly bags
Ourter packing: Export cartons
1. Imported specialized air filter/dust removal composite filter paper,high filtering efficiency
2. Wide pleat design, large filtering area
3. Anti-rust galvanized cap.
4. Galvanized keel with diamond mesh, higher rate of opening pinhole
5. Elastic neoprene gasket ring
6. Good moisture proof ability
Features:
1) Filter media: Cellulose/polyester blend, 100% cellulose or other blend materials
2) Source of media: USA, Finland, Korea or China
3) Great filter surface and airflow
4) Uniform pleat spacing is maintained
5) Cartridge with or without outer mesh available, construction without out mesh is good for agglomerative dust release
6) Hot melt spiral beading to maintain full filtering surface area
Construction:
A) Shape: Cylindrical
B) Top cap: Open steel plate, no rust
C) End cap: Open or closed steel plate, no rust
D) Filter surface: Various available
E) Inner core: Galvanized mesh
F) Outer core: Galvanized mesh or none
G) Gasket: Specialty rubber to ensure airtight sealing
Chemical resistance:
A) Hydrolysis resistance: Fair
B) Acid resistance: Fair
C) Alkaline resistance: Fair
D) Dust release: Good
E) Applicable temperature: 65oC
Both the size of the cartridge and the shape of the caps are available in various specifications. All configurations are changeable to meet the optimum performance of your applications. Please contact us directly for more technical information!
Inner packing: Poly bags
Ourter packing: Export cartons
| CARTRIDGE MODEL | filter Material |
Top end CaP OD mm |
bottom End Cap OD mm | Top end Cap ID mm | bolt hole mm | Height mm |
Filtration area m 2 |
| AR3266 | cellulose/polyester 80/20 | 324mm | 324mm | 213mm | 14mm/-- | 660mm | 21m 2 |
| AR3566 | cellulose/polyester 80/20 | 352mm | 352mm | 241mm | 16mm/-- | 660mm |
23m 2 |
