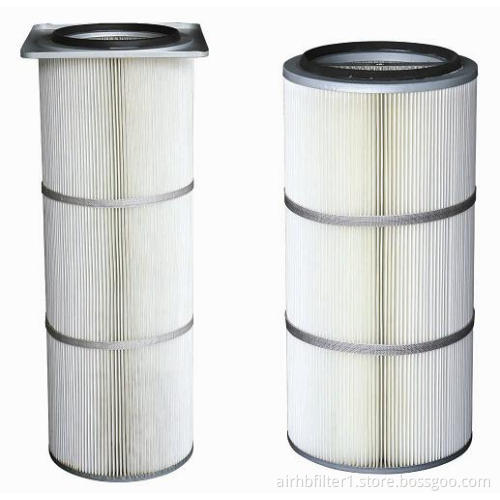

High Efficiency Filter Cartridge for Casting and Sand Blast (AR-PF)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Filter Cartridge Features:

Long fiber polyester filter materials, wide pleat, easy for dust removal
Good abrasion resistance
Anti-rust galvanized end cover and inner core
Special elastic neoprene seal ring
Unique internal screw type gluing, outer protection band

Application Field:
Shipbuilding, containers,large-scale port machinery, steel pre-treatment, etc. power spaying, sand blasting operation, paint industry, filtering of wood processing

Installation method: bevel plug, vertical plug

Optional filter materials:
AR-PF Polyester fiber
AR-FR Flame proof polyester fiber
AR-GW Oil/water-proof polyester fiber
AR-ST Anti-static polyester fiber
AR-PTFE PTFE-membrane polyester fiber

Data Sheet

Model	Filter Material	Top end cap OD mm	Bottom end cap OD mm	Top end cap ID mm	Installation holes mm	Height mm	Filtration area
AR-PF3266	AR-PF/FR/GW/ST/PTFE	324	324	213	14	660	9.4
AR-PF3566	AR-PF/FR/GW/ST/PTFE	352	352	241	16	660	9.4
AR-PF35100	AR-PF/FR/GW/ST/PTFE	352	352	241	16	1000	15
AR-PF40666	AR-PF/FR/GW/ST/PTFE	406362φ324	324	213		660	9.4
