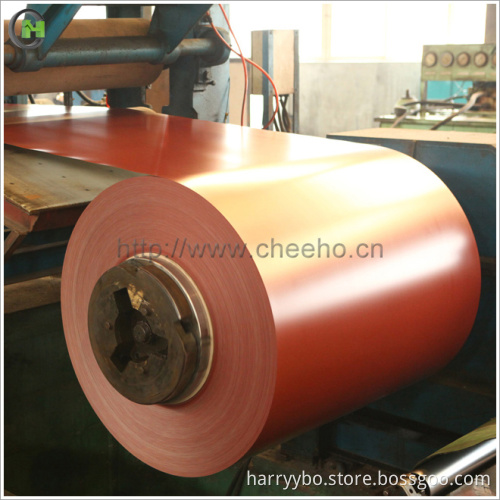

PPGI Steel Coils From China

Brief Introduction

1. PPGI Steel Coils are coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.

2. The base metal for PPGI Steel Coils is hot-dip galvanized steel.

The finish coats of PPGI Steel Coils can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.

3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.

4. The color of the PPGI Steel Coils has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.

5. The PPGI Steel Coils can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.

Specification

1. Thickness: 0.3-0.8mm

2. Width: 914-1250mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-15MT

5. Available Dipped Layer: 50-150g/m²

6. Surface Texture: Normal Coated

7. Type of coating structure: 2/1 Coat the top surface of the steel sheet twice, coat the bottom surface once, and bake the sheet twice.

8. Front Side Paint Thickness: 15-20μm (bottom paint+top paint)

9. Back Side Paint Thickness: 5-10μm
