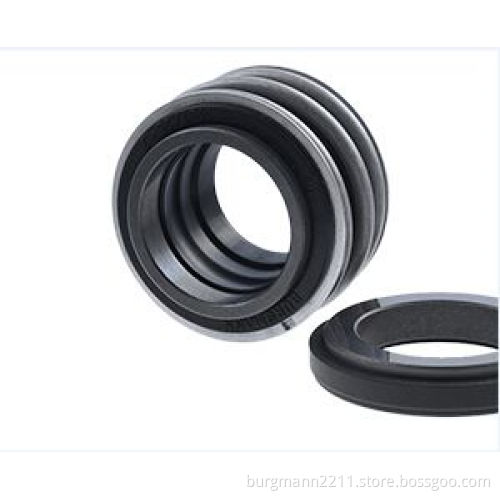

RS-MG1 water pump mechanical seal

Profile

Single seal

Unbalanced

Independent of direction of rotation

Elastomer bellows

Burgmann MG1 seal replacement

Mechanical seals of the RS-MG1 series are amongst the most commonly used. The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar. The seal face is driven through the spring and [L"-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications.

Operating limits

Specification: 10~110mm

Pressure: ≤1.2Mpa

Temperature:-20℃~120℃

Linear speed: ≤10m/s

Axial movement: ±0.5mm

Combination of materials

Sealing face: Carbon, Silicon carbide, Tungsten carbide

Secondary sealing: NBR, FKM, EPDM

Metal component: SS304, SS316
