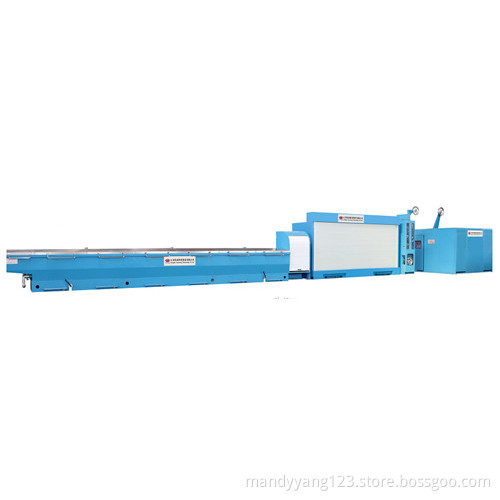

lht450/13 copper rod breakdown machine

Get Latest Price

Payment Type:: L/C, T/T, D/P

Incoterm:: FOB, CFR, CIF

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean

Product Description

Main feature :160;

1:Ironed cast160;
2:Horizontal structure ,dual driving motors, owning rapid die change system.160;
3:High precision gear transmission, high efficiency, low noise 160;
4:Fully immersion way to lubricate and cool, which can guarantee the quality of drawing wire.160;
5:Annealing device is inclined, which is convenient for workers to cross wire, special designed air pipe to send air to the axis of annealing wire.

Technical parameter:160;

Machine type
LHT450/13

Inlet Dia.(mm)216;8

Outlet Dia.(mm)216;1.2-216;3.5(4.0)

Drawing drum Dia.(mm)450

Fix speed capstan Dia.(mm)450

Max. Die No13

Drawing speed(Max.)(m/s)25

Main motor(kw)280(DC)

Fix speed capstan motor75(DC)

Drum arrangement horizontal type

Drawing drum coatede by tungsten

Drawing lubrication immersed type

Gear,bearing lubrication by special pump

online continuous annealer Annealing structure horizontal type

Annealing wheel dia(mm) 216;450

Max annealing current 6000A(DC)

Max annealing voltage 70V(DC)

Take-up type(optional)
1,doubel take-up
2,630 single take-up
3,coiler
4,dischargeable type
