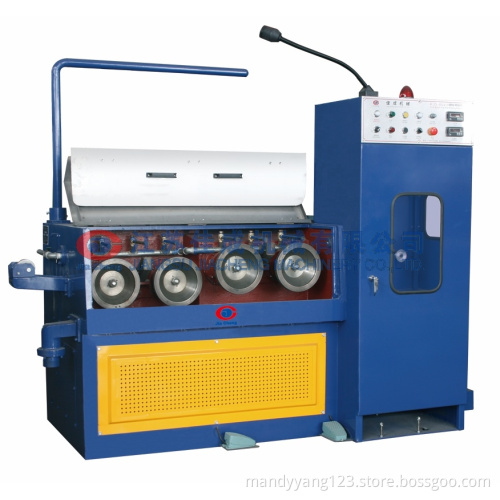

JCJX-B24(B24/A) Fine copper wire drawing machine
Main usage: It is used for drawing copper wire from 0.5-1.2mm to 0.08-0.32mm
Main feature:
1:Double motor inverter ,small slip high quality
2: Tension auto control system
3: High tension durably flat belt gain convenient replacement and low nosie in operating
Technical parameter:
|
JCJXB24(B24/A)Technical parameter: |
|
|
Inverter Control |
Double inverter control |
|
main machine structure |
four cones in horizontal |
|
Inlet Dia |
0.5~1.2mm |
|
Outlet Dia |
0.08~0.32mm |
|
Max Dia |
No:24 |
|
Max line speed(m/min) |
2000(2500)m/min |
|
Body structure |
Ironed cast |
|
Drawing Capstan |
ceramic plasma capstan |
|
Slip ratio of m/c |
13% |
|
Main motor power(k w) |
11(15)k w |
|
take-up motor |
4kw |
|
Fix speed capstan Dia(mm) |
160(206)mm |
|
Transmission type |
flat belt |
|
Take-up bobbin size(mm) |
300mm |
|
Traversing type |
synchronous motor +flat belt |
|
Tension control |
weight balance type |
|
Lubrication type |
spray |
|
Brake |
magnetic brake |
|
Weight |
2300kg |
