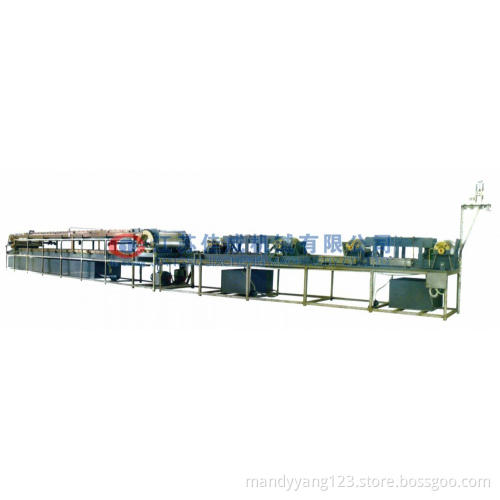

JCJX-3000A/5000A/8000A copper coating machine (production line machine)
Main usage:the Copper wire can be coated a layer of steel outside
Main feature:
1.Double floor water tank, save space.
2.Six rollers, the whole rack made of stainless steel.
3.Main motor by frequency control.
4.Take-up part controlled by torque motor, stable tension.
Technical parameter:
|
Machine model |
JCJX-3000A |
JCJX-5000A |
JCJX-8000A |
|
Control system |
Button type |
||
|
Main power control |
Controlled by electric motor |
||
|
Take-up power control |
Controlled by torque motor |
||
|
Wire diameter |
1.01.4mm |
1.201.80mm |
1.22.2mm |
|
Main motor |
2.2KW |
3.3/ 4KW |
4KW/ 5.5KW |
|
Take-up motor |
YLJ112-12 |
YLJ112-12/ |
YLJ132-16 |
|
Spool reel size |
300mm/ 400mm or according to customers requirement |
||
|
Take-up type |
Shaftless take-up M/C |
||
|
Traversing type |
Plam shaft type |
||
|
Transmission type |
Tri-angle belt, chain |
||
|
Line speed |
10m/min 120m/min |
||
|
Rectifier |
3000A |
5000A |
8000A |
|
Dimension(mm) |
15000*1200*1400 |
18000*1600*1600 |
20000*1800*1600 |
|
Weight |
3500KG |
5000KG |
6000KG |
