JCJX-B22(B22/A) Fine Wire Drawing Machine
- Payment Type:
- T/T, L/C, D/A, D/P
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,L/C,D/A,D/P |
|---|---|
| Transportation: | Ocean |

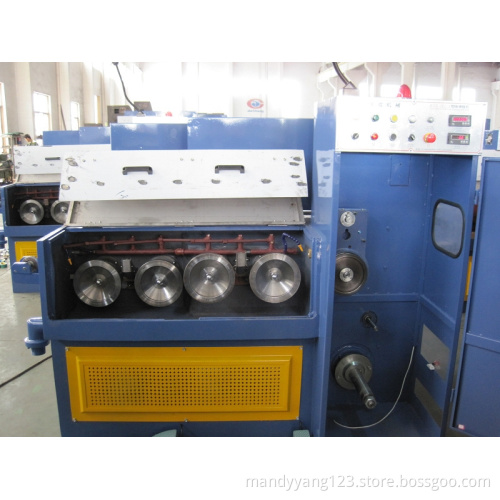

Fine Wire Drawing Machine
Main usage: It is used for drawing copper wire from 0.6-1.38mm to 0.1-0.5mm
Main feature:
1:Double motor inverter ,small slip high quality
2:Tension auto control system
3:High tension durably flat belt gain convenient replacement and low nosie in operating
Technical parameter :
|
JCJXB22(B22/A) Technical paramete |
|
|
Inverter Control |
Double inverter control |
|
main machine structure |
four cones in horizontal |
|
Inlet Dia |
0.6~1.38mm |
|
Outlet Dia |
0.1~0.5mm |
|
Max Dia |
No:22 |
|
Max line speed(m/min) |
2000(2500)m/min |
|
Drawing Capstan |
ceramic plasma capstan |
|
Slip ratio of m/c: |
15% |
|
Main motor power(k w) |
11(15)k w |
|
take-up motor |
4kw |
|
Fix speed capstan Dia (mm) |
160(206)mm |
|
Transmission type |
flat belt |
|
Take-up bobbin size(mm) |
300mm |
|
Traversing type |
synchronous motor +flat belt |
|
Tension control |
weight balance type |
|
Lubrication type |
spray |
|
Brake |
magnetic brake |
|
Weight |
2300kg |
