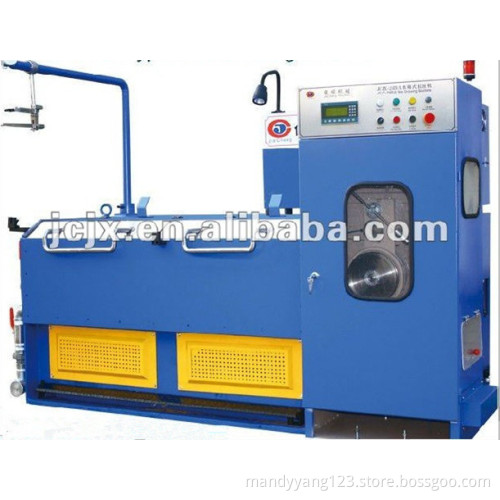

Wire Drawing Machine(Stainless steel wire series)
Main usage: This type is used for drawing S.S wire from 0.6-1.0mm to 0.12mm-0.30mm
Feature:
1.Full immersed lubricant system,transmission by flat belt, constant tension, low noise, high efficiency.
2.Capstan made by special tool steel
3.PLC control, dual motor, dual inverter, color touchscreen.
4.Special alignment device at final die position, keep wire verticality and quality, which is good for next process
5.Stepping motor traverse, pitch adjustable, smooth traversing.
6.Protection device for wire disorder; machine auto stops if mother wire disorder or break.
Technical parameter:
|
Machine type |
JCJX-24B/A |
|
Inverter control |
Double Inverter control |
|
Drawing dies No./Max. |
23 |
|
Inlet diameter |
Ø 0.60--1.00mm |
|
Outlet diameter |
Ø 0.12--0.30mm |
|
Drawing line speed |
200~500m/min |
|
Body structure |
Welded by steel plate |
|
Drawing capstan |
Tungsten plasma capstan |
|
Main motor |
7.5/11KW |
|
Spooler motor |
4KW |
|
Spool bobbin size |
Φ300or as requirements |
|
Transmission type |
Teeth belt + Flat belt |
|
Lubrication type |
Full immersion |
|
Machine dimension (mm) |
2000×1600×1900 |
|
Machine weight |
2500KG |
The competitive advantage:
1.our industry has more than 12 years experience in wire and cable machinery and equipment manufacturing
2.the competition is little, profit is high, suitable for the unconventional competition project users
3.using 20 ( 22) heads high-speed take-up machine wire, will have high work efficiency, suitable for users who need production in great demand
