Extremely Fine Copper Wire Drawing Machine
- Payment Type:
- T/T, L/C, D/A, D/P
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,L/C,D/A,D/P |
|---|---|
| Transportation: | Ocean |

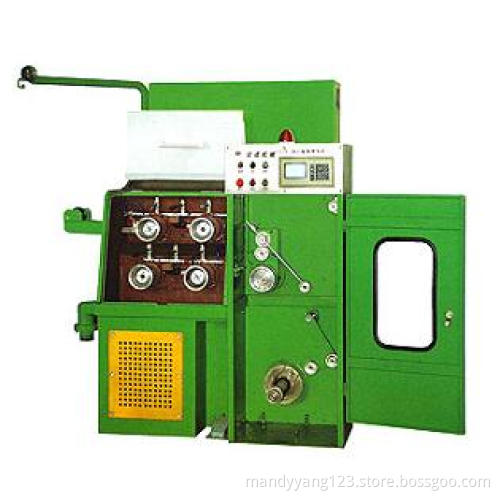

JCJX-20D Extremely Fine Copper Wire Drawing Machine
Main usage: It is used for drawing copper wire from 0.12-0.45mm to 0.05-0.12mm
Main feature:
1:Double motor inverter ,small slip high quality
2:Tension auto control system
3:High tension durably flat belt gain convenient replacement and low nosie in operating
Technical parameter:
|
JCJX20D Technical parameter |
|
|
Inverter Control |
Double inverter control |
|
Body structure |
four cones in vertical |
|
Inlet Dia |
0.12~0.45mm |
|
Outlet Dia |
0.05~0.12mm |
|
Max Dia |
No:20 |
|
Max line speed(m/min) |
1800m/min |
|
Drawing Capstan |
ceramic plasma capstan |
|
Slip ratio of m/c |
10.5% |
|
Main motor power(k w) |
4kw |
|
take-up motor |
2.2kw |
|
Fix speed capstan Dia(mm) |
120mm |
|
Transmission type |
flat belt |
|
Take-up bobbin size(mm) |
250mm. |
|
Traversing type |
synchronous motor +flat belt |
|
Tension control |
weight balance type |
|
Lubrication type |
full immersion |
|
Brake |
magnetic brake |
|
Weight |
1600kg |
