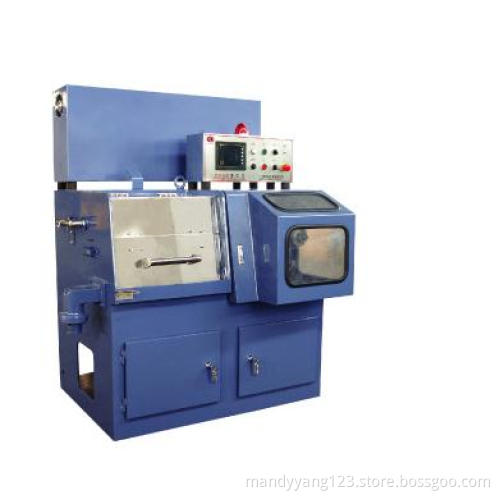

Super fine wire drawing machine
Your message must be between 20 to 2000 characters
Contact NowAdvantage: Double motor inverter ,small slip high quality
Tension auto control system
High tension durably flat belt gain convenient replacement and low nosie in operating
It is applicable to draw copper wire from 0.03~0.08mm to 0.018~0.04mm
|
JCJX15VDTechnical parameter |
|
|
Inverter Control |
Double inverter control |
|
main machine structure |
two cones in horizontal |
|
Inlet Dia |
0.03~0.08mm |
|
Outlet Dia |
0.018~0.04mm |
|
Max Dia |
No:15 |
|
Max line speed(m/min) |
1000m/min |
|
Body structure |
welded by steel plate |
|
Drawing Capstan |
ceramic plasma capstan |
|
Slip ratio of m/c |
10.5% |
|
Main motor power(k w) |
2.2kw |
|
Take-up motor |
0.75kw |
|
Fix speed capstan Dia(mm) |
80mm |
|
Transmission type |
flat belt |
|
Take-up bobbin size(mm) |
160mm |
|
Traversing type |
shaft move type |
|
Tension control |
weight balance type |
|
Lubrication type |
spray |
|
Brake |
magnetic brake |
|
Weight |
1200kg |
