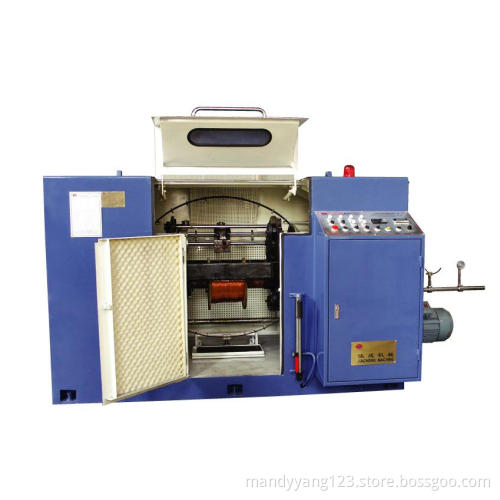

Double twist bunching machine
Your message must be between 20 to 2000 characters
Contact Now(This kind of machine is depend on the latest domestic and international advantages of models)
Main usage: For bunching bare copper, tinned wire, enameled wire(7 wires one time at least)
Technical parameter:
|
Machine type |
JCJX-300P |
JCJX-500P |
|
Machine use |
For bunching bare copper, tinned wire, enameled wire(7 wires one time at least) |
|
|
Control type |
PLC+ HMI+ inverter control |
|
|
Bunching section area(mm2) |
0.035-0.45 |
0.05-2.5 |
|
Single wire size(mm) |
0.05-0.25 |
0.1-0.45 |
|
Pitch(mm) |
3.65-17.15 |
6.3-50.4 |
|
Bunching direction |
S or Z |
|
|
Take-up tension control |
Tension controlled by magnetic clutch |
|
|
Max main shaft speed(RPM) |
3000 |
3000 |
|
Traversing type |
Transverse and distance can be adjusted by bearing transverse |
|
|
Bearing lubrication |
Thin oil lubrication , circulation cooling |
|
|
Bobbin loading&unloading |
Hydraulic type |
|
|
Max spool OD |
300 |
500 |
|
Anto-stop |
Length,inside outside wire break ,or other error auto-stop |
|
|
brake |
Magnetic brake |
|
|
Motor power(kw) |
4 |
5.5 |
|
Main shaft center height(mm) |
630 |
700 |
