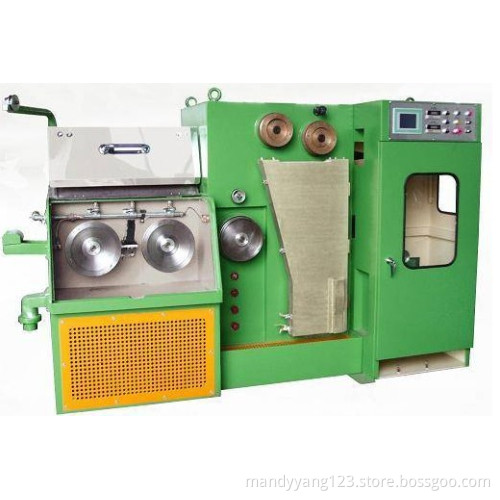

Fine wire drawing M/C with annealer

Get Latest Price

Payment Type:: T/T, L/C, D/A, D/P

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Payment Type:	T/T,L/C,D/A,D/P
Certificate:	CE ISO
Transportation:	Ocean

Product Description

Product Description
Main feature:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2). Third-section-annealing system, outside electrically neutral (no current flow to other unit)
3). Machine's body and other key components and parts are produced by our own factory, quality is reliable.

Technical parameter:
Machine type
JCJX-14DT
Inverter control
Dual inverter control
Max. Drawing dies No.
14
Inlet diameter
0.8- 1.6mm
Out diameter
0.25- 0.65mm
Drawing line speed
1200mpm/max
Slip ratio of m/c
15%
Fix speed capstan slip ratio
8%
Frame
Welded by steel plate
Capstan
Ceramic plasma capstan
Main motor
18.5kw
Spooler motor
5.5kw
Annealing voltage
DC 0-60V
Annealing current
DC 600A
Protection type
Steam or nitrogen
Spool bobbin size
Ø 300mm OR according to customers
Transmission type
By flat belts
Spooler control
PID Synchronous spooler
Detecting device
Weight balance by swing arm
Tension control
Weight balance type
Lubrication type
Spray type
Brake
Magnetic brake
Power source
380v 50 HZ or others
