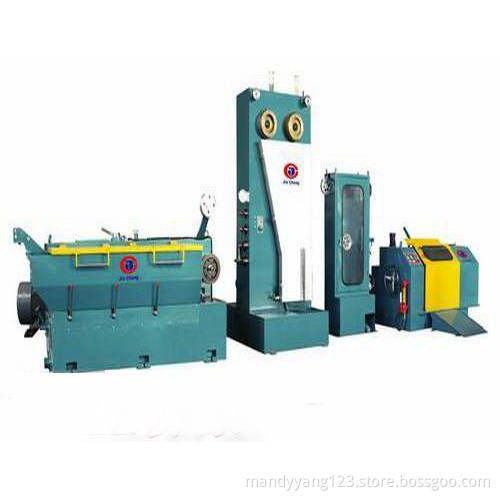

Intermediate wire drawing machine

Get Latest Price

Payment Type:: T/T, L/C, D/A, D/P

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Payment Type:	T/T,L/C,D/A,D/P
Certificate:	CE ISO
Transportation:	Ocean

Product Description

Product Description
Main usage: It is applicable to draw copper wire from max.2.5~3.5mm to 0.4~1.6mm

Main feature:
1) Double inverter control, tension auto adjusting .
2) Unify 250 casr-iron main frame, precision machinery, no shock
3) Capstan treated with wear-resistan tungsten
4) Suitable for continuous annealer, take up machine with and without shalf, coiler machine.

Techincal parameter:
17DHIntermediate wire drawing machine
Inverter Control
Double inverter control
Inlet Dia
2.5~3.5mm
Outlet Dia
0.4~1.6mm
Max Dia No
17
Max line speed(m/min)
2000m/min
Body Structure
ironed cast
Drawing Capstan
tungsten plasma capstan
Slip ratio of m/c
20%
Main motor power(k w)
55kw
Take-up motor
11kw
Fix speed capstan Dia(mm)
250mm
Transmission type
by gear
Take-up bobbin size(mm)
500mm.600mm
Traversing type
motor type
Bobbin loading & unloading type
pneumatic type
Tension control
air pressure type
Lubrication type
full immersion
Brake
disc brake
Online continuous annealer
Machine structure
vertical
Annealing wheel Dia:
250
protection type
steam or nitrogen
Annealing Voltage(V)
60
Annealing current(A)
:2000
