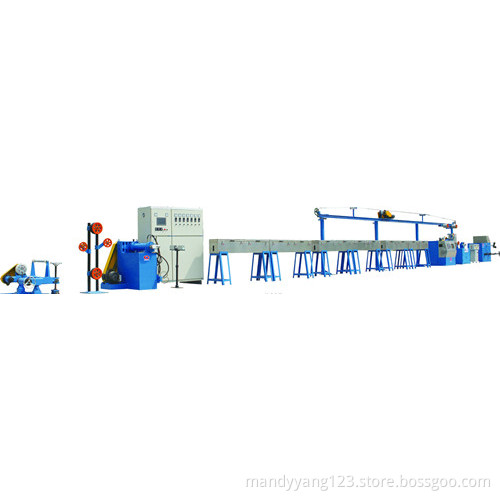

silicon rubber cable extrusion production line
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean |
usage:
applying to all kinds of high tempermeture silicone rubber cable and high tenperature sheaths.
characteristics:
1.PLC+touching screen control,adjusting and monitoring parameter of whole production line.
2.silicone rubber used screw and barrel,crosshead and dies to prevent inner vulcanization.
3.silicone rubber used avoiding adjusting die-head,water cooling system automatic control or manual control.
4.with precision testing feedback system to ensure accurate wire diameter so as to reduce cost.
parameters:
|
model |
JCJX-45 |
JCJX-70 |
JCJX-90 |
JCJX-120 |
|
Main machine power(kw) |
11 |
22 |
37 |
45 |
|
Extrusion capacity(kg/h) |
30 |
80 |
135 |
260 |
|
Screw diameter(mm) |
45 |
45 |
45 |
120 |
|
Screw L/D ratio |
12:1 |
14:1 |
14:1 |
14:1 |
|
Pay-off bobbin size(mm) |
300-400 |
400-630 |
400-630 |
1000-1200 |
|
Conductor sizes(mm) |
0.2-0.3 |
1.5-6 |
2.1-10 |
5-15 |
|
Finished cable sizes(mm) |
0.8-5 |
1.8-8 |
3-12 |
8-20 |
|
Vulcanization tank length(m) |
12 |
16 |
24 |
24 |
|
Heating power |
3 section 36kw |
4 section 48kw |
6 section 72kw |
9 section 84kw |
|
Traction motor(kw) |
2.2 |
4 |
7.5 |
11 |
|
Production speed(m/min) |
10-200 |
10-200 |
4-40 |
4-40 |
|
Take-up bobbin sizes(mm) |
400-500 |
400-630 |
1250-1600 |
1250-2000 |
