Fruit Stone Washer Fruit Juice Plant Stainless Steel

Product Description

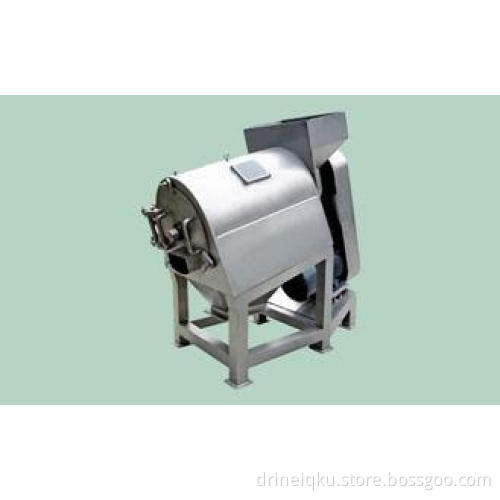

CRUSHING MACHINERY AND EQUIPMENT

The machine is mainly used to crush fruit and vegetable. It consists of side cover, flying blade, sieve, machine body and spindle etc. Parts.
The whole machine is composed of material feeding hopper, side cover, machine body, spindle, bearing seat, motor, machine frame and material discharging hopper etc.
During the operation, the motor will drive the spindle at a constant speed to rotate through a pair of pulleys. The spindle is installed with flying blade for high speed rotation. The materials drop into the material feeding hopper through the lifter and are crushed by the flying blade rotating at high speed. Due to the function of centrifugal force, the materials will drop into the storage tank from the sieve with waist-shaped holes, and then will be transferred to the next procedure by the delivery pump.
The advantage of hammer type crushing machine is the granularity of the crushed materials is even and the size depends on the sieve with waist-shaped holes.

TECHNICAL PARAMETERS OF HAMMER TYPE CRUSHING MACHINE

Model Type	CPS-5	CPS-10	CPS-20	CPS-25
Power (Kw)	11	18.5	22	30
Hammer Number	24	33	42	54
Capacity (T/h)	5	10	20	25
Mechanical size	1200×1200×1800	1500×1500×1800	2000×2000×1800	2000×2000×1800

TECHNICAL PARAMETERS OF HAMMER PIECE TYPE CRUSHING MACHINE

Model Type	HCPS-0.5	HCPS-2	HCPS-5
Power (Kw)	1.1	3	5.5
Hammer Number	12	24	36
Capacity (T/h)	0.5	2	5
Mechanical size	600×600×1200	800×600×1200	800×1000×1200
