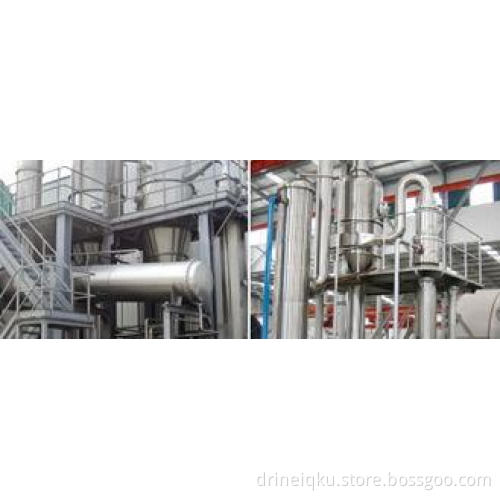

Triple - effect Forced Circulating Evaporator Dairy Processing Machinery Stainless Steel

Basic Info.

Application:Milk, Yogurt

Customized:Customized

Export Markets:Global

Product Description

TRIPLE-EFFECT FORCED CIRCULATING EVAPORATOR

Model and specification: SNQZ-XX
XX-moisture evaporation amount (L/h): 6000,8000,12000,15000,18000,36000,46000,55000,75000,90000,110000

DOUBLE-EFFECT FORCED CIRCULATING EVAPORATOR

Model and specification: SNQZ-XX
XX-moisture evaporation amount (L/h): 4000,5000,8000

SINGLE-EFFECT FORCED CIRCULATING EVAPORATOR

Model and specification: SNQZ-XX
XX-moisture evaporation amount (L/h): 1000,1500,2000

APPLICABLE RANGE

Forced circulating single-effect, double-effect, triple-effect and multi-effect evaporators are applicable for low temper-ature concentration of high concentration and high viscosity materials containing indissoluble solid things in food, med-icine, chemical industry, biological project, environment pr-otection project and waste liquid recovery etc,industries.

SYSTEM COMPONENTS

Composed of evaporators of various effects, separators of various effects,condenser,circulating pump,pump between effects, vacuum and drainage system, branch cylinder, operation platform, electric
meter control cabinet, valve, pipe etc. Systems.

MAIN CHARACTERISTICS

1. The whole set system has reasonable and beautiful design, stable operation,high efficiency,energy sav-ing and low steam consumption.
2. Large concentration ratio, forced circulating type, whi-ch can make the materials of larger viscosity easily flow and evaporate and shortens the concentrating time.
3. The special design can make modifications of effects easily to realize production of various products.
4. Low evaporation temperature. The heat quantity can be fully used. The heating of materials is warm, so it is applicable for concentration of heat sensitive materials.
5. After forced circulating, the evaporator is heated ev-enly in the pipe with high heat transfer coefficient, in order to prevent the occurrence of "dry walls".
6. The materials and liquids are separated after coming into the separator. The effect of separating is greatly improved, and it is flexible to operate.
7. The whole set equipment is quite compact,and oc-cupies little area, and the layout is simple and fluent, all of which are the developing tendency of large-sized whole set evaporating equipments.
8. Continuous materials inlet and outlet, and the liquid level of materialsand needed concentration can be automatically controlled.
