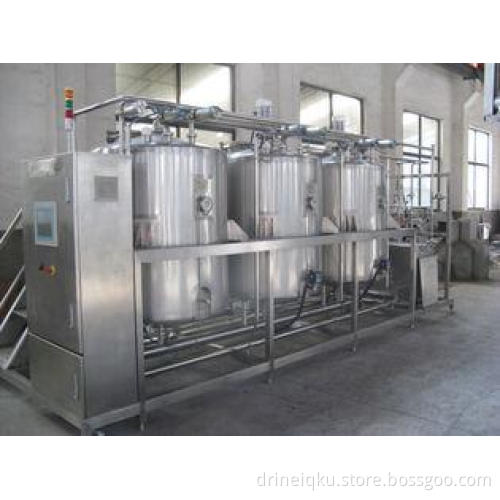

Fully Automatic CIP Cleaning System / CIP Washing Equipment

CIP Cleaning In Place System for Beverage Production Lines​

USE

The operating principle of the full auto CIP cleaning system means that the tank body, pipelines, pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments, all cleanings are done at the closed circuit.

TECHNICAL

This system adopt the PLC program to control, with the colored touch --screen to operate and display the whole process flow and also the each controlling parameter. The temperature of the cleaning liquid can be installed. It can set the PH value , the cleaning time, cleaning sequence , and also the refluence PH value. With the system malfunction alarm device.

THE OPERATING PRINCIPLE OF THE SYSTEM

1. Auto-flow control for the cleaning solution

2. Automatically regulate the temperature of the cleaning liquid.

3. Auto-compensate for the inside tank liquid level.

4. Automatically-compensation for the acid and alkali concentration.

5. Auto transfer from one cleaning liquid to another.

6. System auto alarm-device
