battery type floor scrubber
  • battery type floor scrubber
battery type floor scrubber

battery type floor scrubber

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Jiangsu, China (Mainland)
Product Description
Product Description

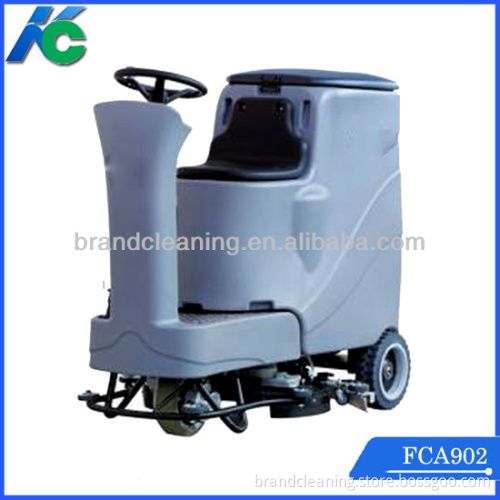

Technical specification for the mini ride on battery type floor scrubber
Model FCA902
Suction vacuum 1720mmH2O
Tractor speed 180rpm
Charger 24V/25A
Machine dimensions 154*74*130cm
Working capacity 3600m2/h
Maximum gradient 15%
Recovery tank capaity 80L
Traction motor 645W
Duration of working 3H
Cleaning width 66cm
Squeegee width 92CM
Recovery tank capacity 90L
Brush motor 2pcs 350W/24V
Battery 245AH/6V/4PCS
Dribing speed 0-6km/h
Brush pressure >35kg.f

Technical Specification for the mini ride on battery type floor scrubber
Flexible operation:The machine width is only 65cm,the anti-collision frame is only 72cm. The machine is available for most passages
  • The manual structure patent is applicable for ascending and descending brush and squeegee to guarantee the stability of the ascending and descending system
The machine is applicable for structure adjustment patent to assure the angle between the brush and the horizontal floor and make the floor cleaner
  • The squeegee is installed through a clasp. Release the squeegee clasp to take off the retaining metal strip assembly. After that, the rear squeegee can be removed. Meanwhile, it is more convenient to get off the squeegee assembly only by loosening the two star nuts .
  • The machine owns integral solution tank structure, so it is beneficial to maintenance by turning over the whole solution tank
  • The brush can be assembled and disassembled automatically. In order to change the brush, press removing brush button to disassemble brush. On the other hand, push the brush under the proper position firstly, and then press the assembling brush button to complete brush assembling.
  • Brush pressure adjustment:Ascending and descending brush is controlled by liner actuator and can works by pressing the brush-up button and brush-down button. Besides, it can adjust brush pressure flexibly according to electric current gauge and ground situation so as to clean different ground (roughness and dirty degree).
