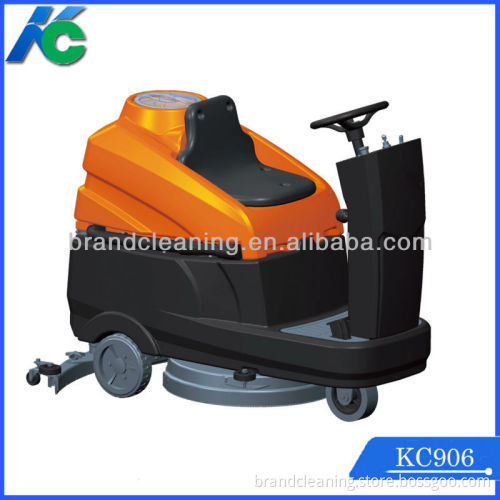

Drive type floor scrubber dryer machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications Specification for the floor scrubber dryer :

1:Passed the UL certificate

2:With 55cm cleaning width

3:3 stage motor

Technical specification for the drive type floor scrubber dryer machine
Model	KC906
Suction vacuum	1720mmH2O
Tractor speed	200rpm
Charger	24V/25A
Machine dimensions	13963112cm
Working capacity	3360m2/h
Operating tension	DC24V
Recovery tank capaity	70L
Traction motor	400w
Maximum solution supply	02.6L/min
Cleaning width	56CM
Vacuum motor	550W
Minimum radius	110cm
Noise level	<75dB
Recovery tank capacity	10L
Brush motor	550W
Battery	120AH/12V/2PCS
Driving speed	0-6km/h
Brush pressure	>25kg.f
Maximum gradient	13%
Squeegee width	75cm

Technical Specification for the driven type floor scrubber dryer machine
The machine is original and fashion design, portable and flexible, easy for operation and use The machine width is only 63cm that is available to small space. Having four-stand structure, ascending and descending brush and squeegee system can keep stable and reliable. Owning angle adjustment structure of squeegee pressure, the squeegee works well and sucks more dirty water. Touch keys are design for control panel with words and figures that helps user operate in different countries and districts. The machine has automatic and manual operation mode. Under the automatic mode, the machine goes on with sprinkling solution water, scrubbing floor, sucking soiled water. Otherwise, each function can also be operated by hands singly The sprinkling motor and the solenoid valve are designed for solution water supply, which is more stable than the mode of supplying water by gravity. Stable solution water can be sprinkled regardless of the influence of the water level. The water flow capacity can be regulated by three levels (slow, medium, high). The brush can be assembled and disassembled automatically. In order to change the brush, press removing brush button to disassemble brush. On the other hand, push the brush under the proper position firstly, and then press the assembling brush button to complete brush assembling.

Technical Specification for the driven type floor scrubber dryer machine

The machine is original and fashion design, portable and flexible, easy for operation and use
The machine width is only 63cm that is available to small space.
Having four-stand structure, ascending and descending brush and squeegee system can keep stable and reliable.
Owning angle adjustment structure of squeegee pressure, the squeegee works well and sucks more dirty water.
Touch keys are design for control panel with words and figures that helps user operate in different countries and districts. The machine has automatic and manual operation mode. Under the automatic mode, the machine goes on with sprinkling solution water, scrubbing floor, sucking soiled water. Otherwise, each function can also be operated by hands singly
The sprinkling motor and the solenoid valve are designed for solution water supply, which is more stable than the mode of supplying water by gravity. Stable solution water can be sprinkled regardless of the influence of the water level. The water flow capacity can be regulated by three levels (slow, medium, high).
The brush can be assembled and disassembled automatically. In order to change the brush, press removing brush button to disassemble brush. On the other hand, push the brush under the proper position firstly, and then press the assembling brush button to complete brush assembling.
