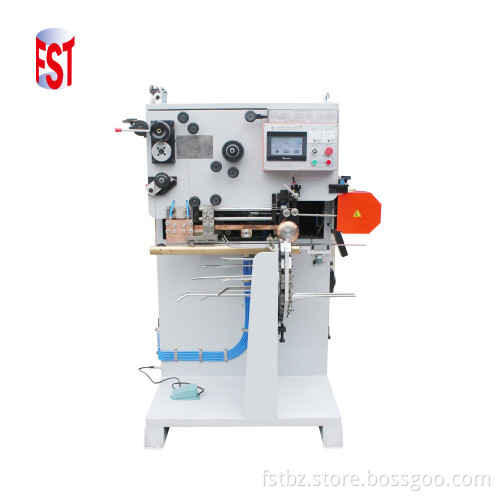

Ce Certified Semi-Automatic Tin Canning Machine for Can Making Production Line

Ce Certified Semi-Automatic Tin Canning Machine for Can Making Production Line

$15000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Main technical parameter
Model	FB2000-A	FB2000-B
Input power	3N380V/50Hz 15KVA
Welding speed	≤12m/min
Productivity(cpm)	20~50
Can Diameter(mm)	Φ 65~Φ 290	Φ 52~Φ 180
Can Height(mm)	70~420(500)
Welding frequence	80~250Hz
Welding material	Tinplate
Overlap(mm)	0.6~1.2	0.4~0.9
Material thickness(mm)	0.18~0.4	0.18~0.35
Copper wire(mm)	Φ1.5 T2
Cooling water	0.3Mpa 8~10L/min ≤20℃
Weight(kg)	1300
Dimensions(mm)	135012002000

Product feature

• Adopt Japan's Panasonic PLC and Mitsubishi frequency conversion speed governor control system,touch screen operation.
• The new-type variable frequency power supply with communication Interface,also have constant current and attenuation function of front and back end of the current.
• Through sensor and program can precise control front and back end welding current location.
•Change the sizing gauge can welding different size of cans.
• Comprehensive monitoring of equipment operation.and with failure self-detected and arlarms system,also provide solution proposal.
• Electric component from world famous brand:PANASONIC,MITSUBISHI,OMRON,SMC,SCHNEIDER and LG.
