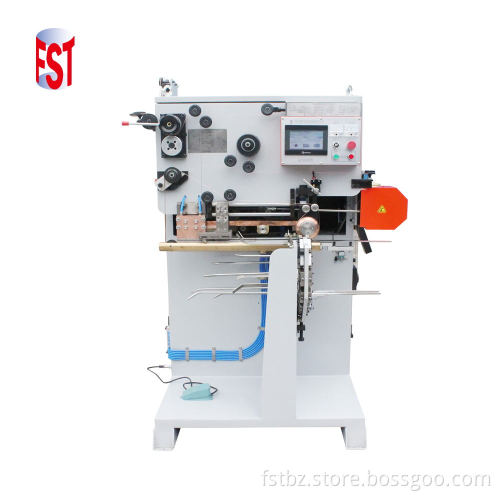

FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
  • FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine
FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine

FB2000 Semi-Automatic Metal Tin Can Side Seam Welding Machine

  • $16000.00
    ≥1 set
Min. Order:
1 set
Min. Order:
1 set
Port:
shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Supply Ability: 100 Set/Sets per Year
Payment Type: L/C,D/P,D/A,T/T
Port: shanghai
Product Description
Product Description
Product Paramenters
Model
FB2000-A
FB2000-B
Input Power
3N 380V/50Hz 15KVA
3N 380V/50Hz 15KVA
Welding Speed
≤12m/min
≤12m/min
Productivity
15cans/min
30cans/min
Diameter Range
Φ65~Φ290mm
Φ52~Φ180mm
Height
420mm(500mm)
400mm
Welding Thickness
0.28~0.42mm
0.18~0.4mm
Overlap
0.6~1mm
0.4~0.6mm
Copper Wire
Φ1.5 T2
Φ1.5 T2
Cooling Water
0.3Mpa  8~10L/min ≤20℃
0.3Mpa 8~10L/min ≤20℃
Net Weight
1350kg
1350kg
Dimension
1350x1450x2000mm
1350x1450x2000mm
Products Description
♦ Panasonic PLC and Mitsubishi frequency conversion speed governor control system,touch screen operation.
♦ Welding frequency is adjustable with constant current and attenuation function of front and back end.
♦ Sensor can precise control the welding current location of front & back end,change copper wire speed,no need to adjust again.
♦ Change the gauge tooling can welding different size of cans.
♦ Comprehensive monitoring of equipment running.with failure self-detected alarms system and provide solution proposal.
Our Advantages
♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & NSK bearings from Sweden or Japan.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
Recommend Products

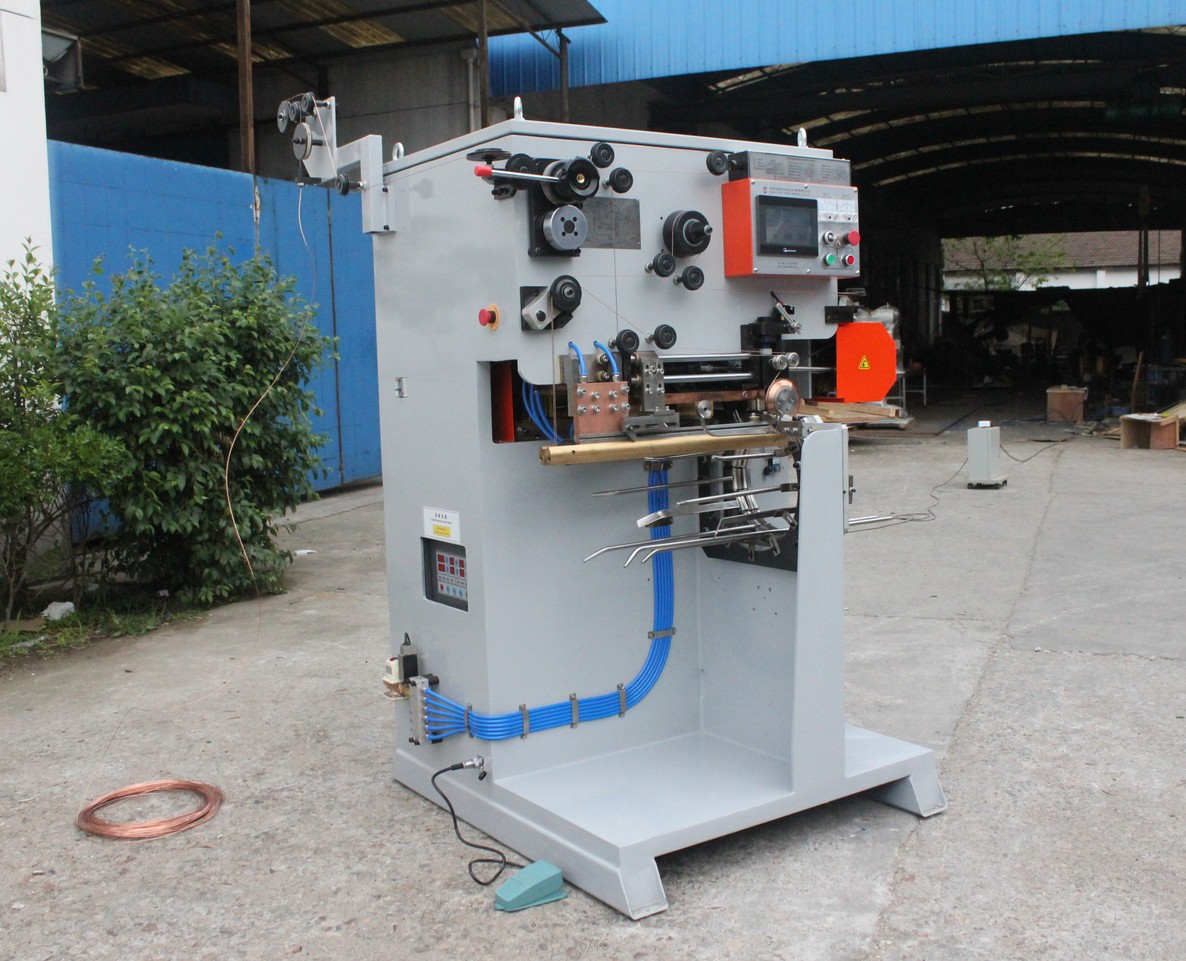

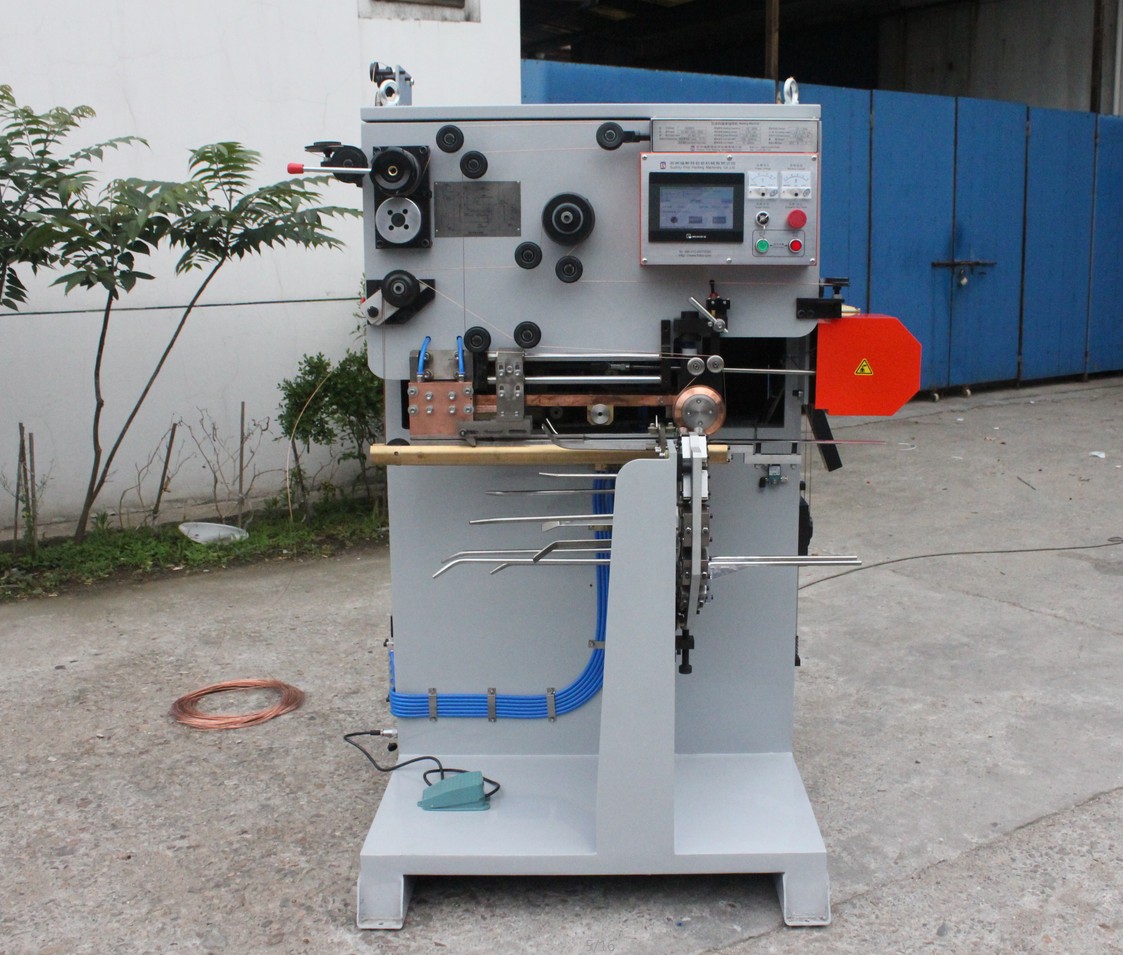

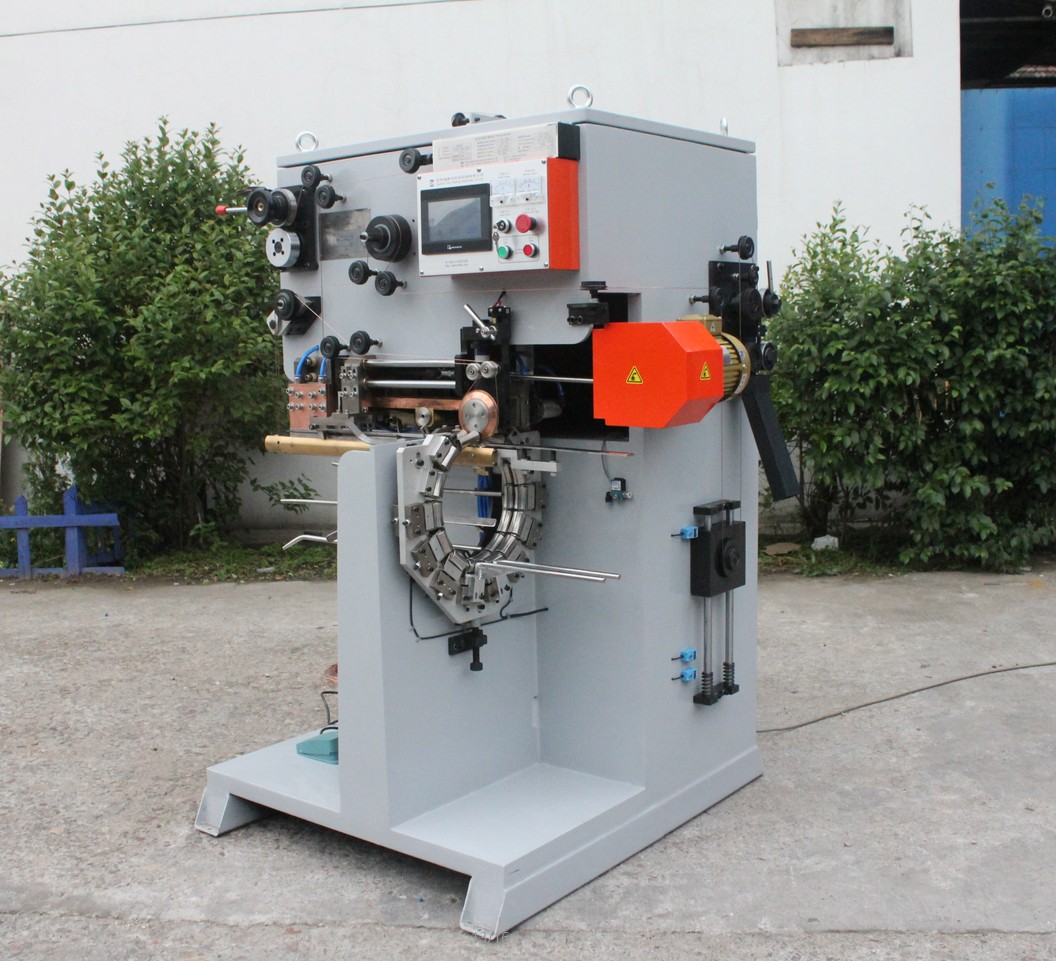

Details Images
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
