Suzhou First Semi-Automatic Paint Oil Tin Body Welding Machine for Cans

Suzhou First Semi-Automatic Paint Oil Tin Body Welding Machine for Cans

$17000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,D/P,T/T
Port:	Shanghai

Product Description

Product Name:semi automatic paint oil tin body welding machine for cans

Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems

Metal Can/Container Packaging Industry

Suitable:Food Chemical,Latex Paint,Motor Oil,Putty,Vacuum Cleaner,Ventilation Pipe.

Material:Tinplate,Galvanized, Stainless Steel,Cold Roller Sheet

Type:Round/Square/Conical/rectangle

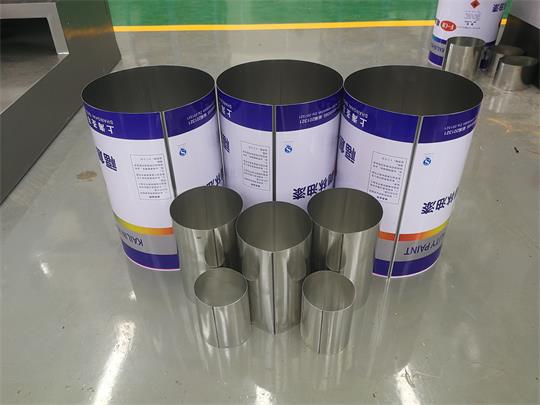

Product:Cans,Pails,Drums or Irregularly Shaped Containers

Size:0.25~25Liter

Products Description

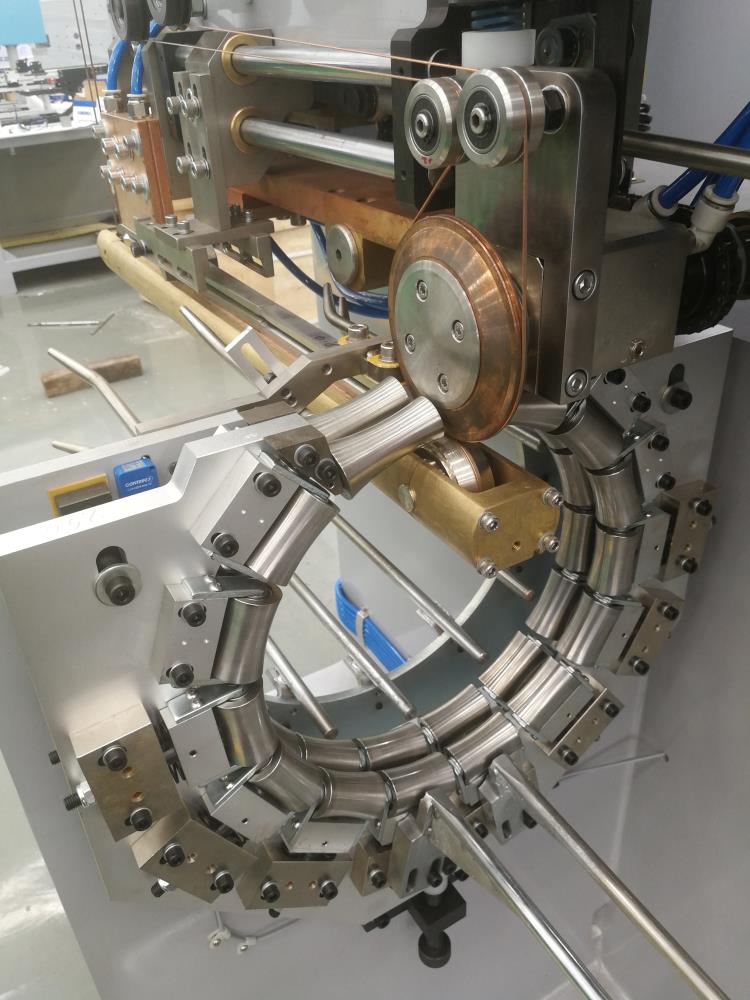

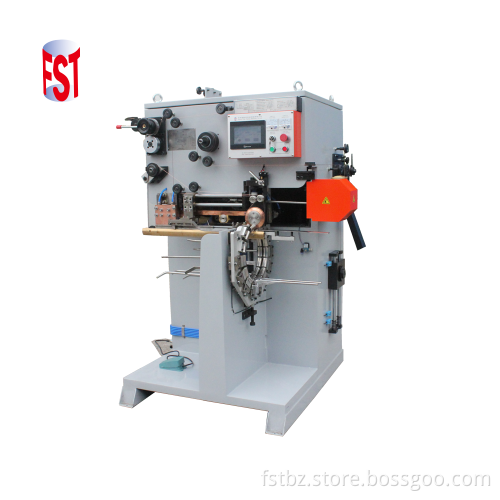

FB2000 Semi automatic Tin Can Seam Welder

FB2000 Semi automatic Tin Can Seam Welder is a special equipment for metal tin can making industry,use to welding tin can body,change the calibrating tool can welding different size of cans.

Features:

1/Panasonic PLC and Mitsubishi frequency conversion speed governor control system,
2/Welding frequency is adjustable with constant current and attenuation function at front & back end
3/Sensor can precise control the welding current location at front & back end,change copper wire speed.
4/Change the gauge tooling can welding different size of cans.
5/Comprehensive monitoring the equipment running,with failure self-detected alarms and provide solution system.

PLC:Panasonic in Japan

Frequency Converter:Mitsubishi in Japan

Photoelectric Switch:Panasonic in Japan

Rotary Encoder:OMRON in Japan

Water Detection Switch:SMC in Japan
Low-voltage Electrical Appliances:Schneider in France

Welding Wheel Material:Beryllium Copper

Z-bar Material:Carbide

Product Paramenters

Model	FB2000-A	FB2000-B
Input Power	3N 380V/50Hz 15KVA	3N 380V/50Hz 15KVA
Welding Speed	≤12m/min	≤12m/min
Productivity	15cans/min	30cans/min
Diameter Range	Φ65~Φ290mm	Φ52~Φ180mm
Height	420mm(500mm)	400mm
Welding Thickness	0.28~0.42mm	0.18~0.4mm
Overlap	0.6~1mm	0.4~0.6mm
Copper Wire	Φ1.5 T2	Φ1.5 T2
Cooling Water	0.3Mpa 8~10L/min ≤20℃	0.3Mpa 8~10L/min ≤20℃
Net Weight	1350kg	1350kg
Dimension	1350x1450x2000mm	1350x1450x2000mm

Recommend Products

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
