Seam Welding Machine For Can Body Making

Product Description Product Name:Seam Welding Machine For Can Body Making

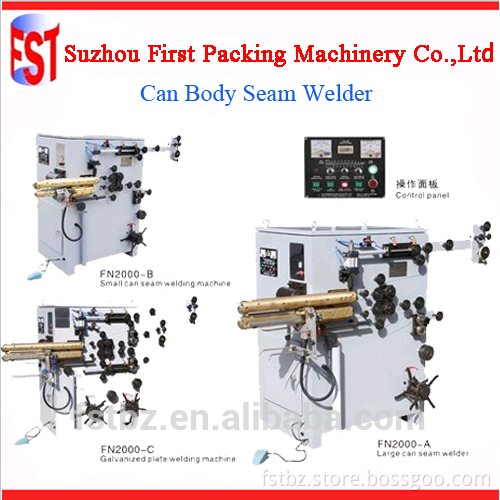

Model	FN2000-A	FN2000-B	FN2000-C
Power	3N.380V/50Hz 10KVA
Welding speed	5-10m/min
Capacity	10~20cans/min
Diameter Range	Φ105~Φ300mm	Φ52~Φ176mm	Φ105~Φ300mm
Height Range	≤400(500)mm	≤250mm	≤400(500)mm
Overlap	3~4mm	2~3mm	3~4mm
Thickness	0.18~0.4mm	0.18~0.4mm	0.18~0.5mm
Welding Material	Tinplate/steel-base sheet		Galvanized/Tinplate
Copper wire	Φ1.5 T2		Φ1.5-Φ1.7 T2
Cooling water	0.3MPa 8-10L/min
Net Weight	1000kg
Dimension	2200x1100x1600mm

Main Features Seam Welding Machine For Can Body Making • The equipment is easy to maintance and repair,can welding many size of cans which needn't to add other accessoriers.
• Adopt Japan's mitsubishi PLC and frequency conversion speed governor control system.
• Welding current is using a new generation digital circuit microcomputer control,with the function of gently rising and slow function at front and back end of current.
• Small can using tiles jig,the can body non-deformation after welding,easily flanging at next working procedure.
• Galvanized material adopt double copper wire technique,the copper wire with zinc layer cann't reusable,ensure the welding quality.
• Welding positioning device with upper and lower limit,prevent loose function.
• Welding pressure, wire reservoir pressure have a table show,intuitive and convenient to adjust.
• Electric component from world famous brand:MITSUBISHI,OMRON,SCHNEIDER,LG,
SEMIKRON. Our Advantage ♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds Detail Pictures Relat Products
