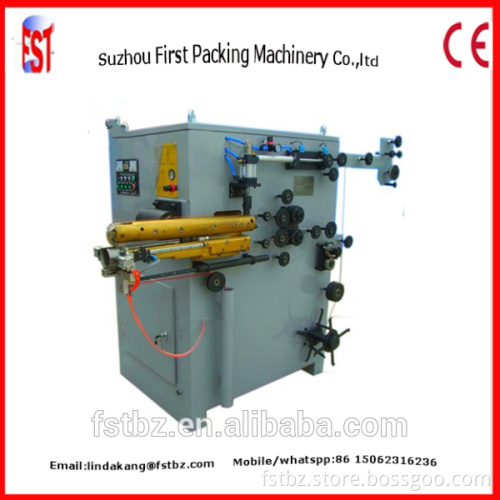

Chinese FN2000-A/B/C/D Can Body Maker Forward Feeding Seam Welding Machine

Specification

Forward seam welders for small can
Model:	FN2000-B
Power:	3N380V/50HZ----18KVA
Welding speed:	5-10m/min
Capacity:	10-20cans/min
Diameter:	52-176(mm)
Height:	≤250mm
Overlap:	2-3mm
Thickness:	0.18-.04mm
Welding material	Tin
Copper wire:	Ø1.5 mm
Net Weight:	1000kgs
Dimension:	2200x1100x1600mm

Forward seam welders for large can
Model:	FN2000-A
Power:	3N380V/50HZ----18KVA
Welding speed:	5-10m/min
Capacity:	10-20cans/min
Diameter:	Ø105-300
Height:	≤400
Overlap:	0.6-1.2mm
Thickness:	3-4mm
Welding material	Tin
Copper wire:	Ø1.5 mm
Net Weight:	1000kgs
Dimension:	2200x1100x1600mm

Galvanized sheet seam welding machine
Model:	FN2000-C
Power:	3N380V/50HZ----18KVA
Welding speed:	5-10m/min
Capacity:	10-20cans/min
Diameter:	105-300(mm)
Height:	≤400(mm)
Overlap:	3-4mm
Thickness:	0.18-.05(mm)
Welding material	Tin/Galvanized
Copper wire:	Ø1.5-1.7 mm
Net Weight:	1000kgs
Dimension:	2200x1100x1600mm

Thick sheet seam welding machine
Model:	FN2000-D
Power:	3N380V/50HZ----18KVA
Welding speed:	2-6m/min
Diameter:	72-500(mm)
Height:	≤1000(mm)
Overlap:	6-8mm
Thickness:	0.3-1.0(mm)
Welding material	Tin/Galvanized
Copper wire:	Ø1.8-2.0 mm
Net Weight:	1200kgs
Dimension:	2500x1100x1600mm

Applications Related Products Company Information Suzhou First Packing Machinery
Suzhou First Packing Machinery Co.Ltd was founded in 1997.it's the profession design can makermachine manufacturer ,the productions are wildly apply to metal container packing field,such as food,beverage,petroleum,chemical industry,paint,coating,and so on.we are looking forward to your visit for further negotiation and cooperation.Welcome friends from all over the world to visit our company,we will try our best to serve you .
We speacilized in various can making such as:
1-5l round tin canister making line.
1-4l square can making machine.
10-20l cone tank production equipment.
18-20l round can making equipment.
18-20l rectangular tank production line.
Automatic food can production machines. Customers Packing & Delivery Our Service
