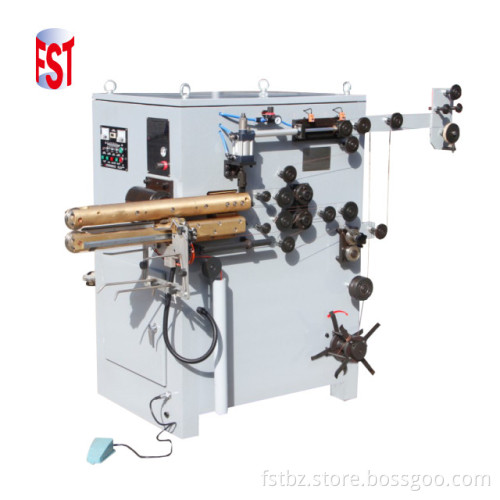

Used FN2000-A Side Front Seam Welding Machine for Tin Can Production

Used FN2000-A Side Front Seam Welding Machine for Tin Can Production

$12000.00

1-2 set
$11500.00

≥3 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,T/T
Port:	shanghai

Product Description

Specification

Semi-automatic forward seam welding machine

Model:	FN2000-A	FN2000-B	FN2000-C	FN2000-D
Power:	3N380V/50HZ----10KVA			3N380V/50HZ-46KVA
Welding speed:	5-10m/min			2-6m/min
Capacity:	10-20cans/min			10-20cans/min
Diameter:	Ø105-300mm	52-176mm	105-300mm	72-500mm
Height:	≤400(500)mm	≤250mm	≤400mm	≤1000mm
Overlap:	3-4mm	2-3mm	3-4mm	6-8mm
Thickness:	0.18-0.4mm	0.18-.04mm	0.18-.05mm	0.3-1.0mm
Welding material	Tin	Tin	Tin/Galvanized	Tin/Galvanized
Copper wire:	Ø1.5 mm T2			1.8-2.0mm T2
Net Weight:	1000kgs			1200kg
Dimension:	2200x1100x1600mm			2500x1100x1600mm

Semi-automatic backward seam welding machine

Automatic rolling seam welding machine

Automatic roll formers Automatic seam welders Backward seam welders Auto lug spot welders

Our advantage

1,MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
2,OMRON Sensor and photoelectric switch form Japan.
3,SMC Waterway detected flow switch from Japan.
4,SKF bearings from Sweden.
5,SCHNEIDER electrical appliance components from France.
6, LG air switch,contactor and circuit breaker from South Korea.
7,SEMIKRON control thyristors from German.
8,BOURNS potentiometer from America.
9,AIRTAC pneumatic components and YONGKUN motor from Taiwan.
10,KOMPASS hydraulic system from Taiwan.
11,SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds

Applications

1-5L round can 10-25L conical pail 1-4l rectangular can 18L square can
