Automatic Food Container Production Line for Tomato Paste Cans

Automatic Food Container Production Line for Tomato Paste Cans

$34500.00

1-4 set
$33500.00

≥5 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,T/T
Port:	shanghai

Product Description

Specification

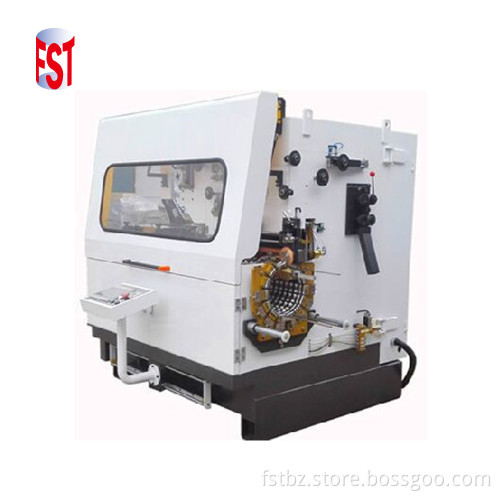

Automatic rolling seam welding machine

Model	FBZ-A	FBZ-B	FBZ-C
Power:	3N380V/50HZ----46KVA	3N380V/50HZ----46KVA	3N380V/50HZ----35KVA
Welding speed:	6-18m/min	6-18m/min	6-24m/min
Capacity:	≤60cans/min	≤60cans/min	≤200cans/min
Diameter:	250-290mm	120-180mm	52-180mm
Height:	200-420mm	≤250mm	≤315mm
Overlap:	0.8-1.0mm	0.6-0.9mm	0.4-0.6mm
Thickness:	0.28-0.4mm	0.18-0.4mm	0.16-0.3mm
Copper wire:	Ø1.5 mm T2
Net Weight:	1850kg
Dimension:	2000x1800x1600mm

Automatic roll formers Automatic seam welders Backward seam welders Auto lug spot welders

Our advantage

1,MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
2,OMRON Sensor and photoelectric switch form Japan.
3,SMC Waterway detected flow switch from Japan.
4,SKF bearings from Sweden.
5,SCHNEIDER electrical appliance components from France.
6, LG air switch,contactor and circuit breaker from South Korea.
7,SEMIKRON control thyristors from German.
8,BOURNS potentiometer from America.
9,AIRTAC pneumatic components and YONGKUN motor from Taiwan.
10,KOMPASS hydraulic system from Taiwan.
11,SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds

Applications

1-5L round can 10-25L conical pail 1-4l rectangular can 18L square can
