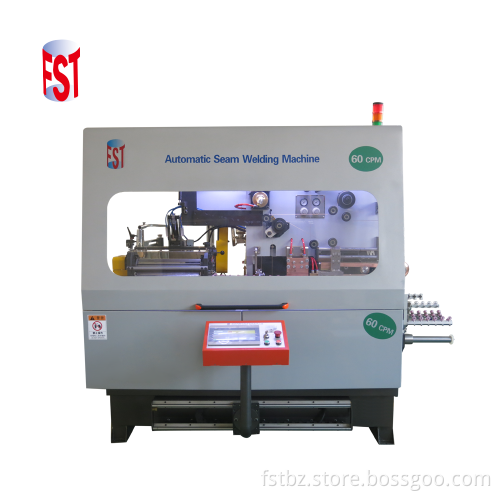

Tin Can Body Making Machine

$35000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,T/T
Port:	Shanghai

Product Description

Product Paramenters

Model	FBZ-A-60	FBZ-A-30
Input Power	3N 380V/50Hz 100KVA	3N 380V/50Hz 46KVA
Welding Speed	6~25m/min	5~15m/min
Productivity	60cans/min	30cans/min
Diameter Range	Φ220~Φ290mm	Φ220~Φ290mm
Height	420mm(500mm)	420mm(500mm)
Welding Thickness	0.28~0.42mm	0.28~0.42mm
Overlap	0.6~0.8mm	0.6~1mm
Copper Wire	Φ1.5 T2	Φ1.5 T2
Air Compresser	900L/min 0.5Mpa	900L/min 0.5Mpa
Cooling Water	0.3Mpa 8~10L/min ≤18℃	0.3Mpa 8~10L/min ≤18℃
Net Weight	3000kg	2500kg
Dimension	2300x2700x2000mm	2200x2700x2000mm

Products Description

♦ Panasonic's PLC programmable control and servo drive system.
♦ Rounder with automatic lubrication,double-sheet identification and operating system integration.
♦ Pricision control front & back current and copper wire spacing.
♦ Water-cooled welding transformer,can stable running for a long time.
♦ Independent electrical cabinet structure,fully compliant with the EMC specification.
♦ Highly-automatized,worker only input can size and speed.
♦ Equipped with remote maintenance to provide more efficient service.

Our Advantages

♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & NSK bearings from Sweden or Japan.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.

Recommend Products

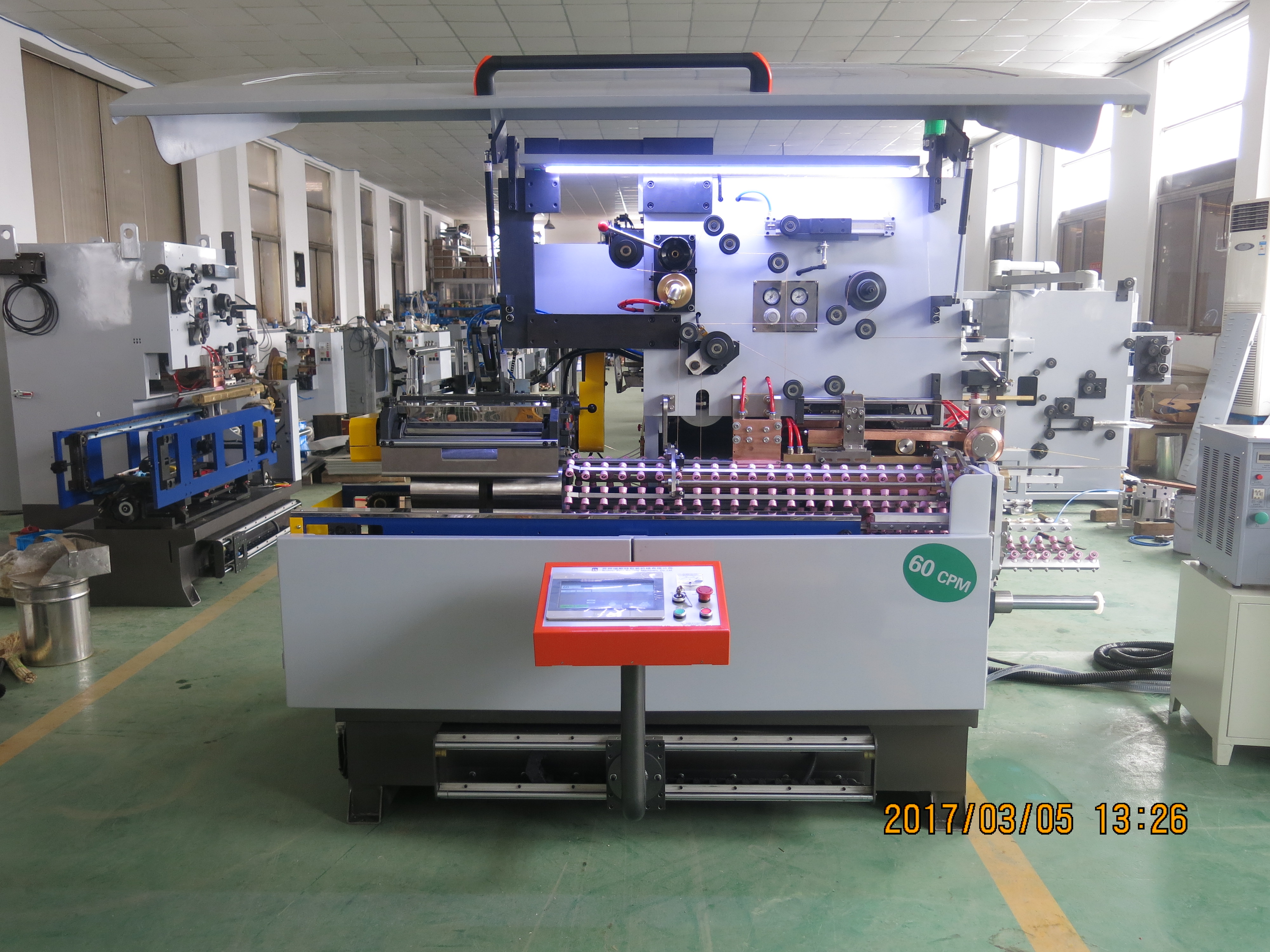

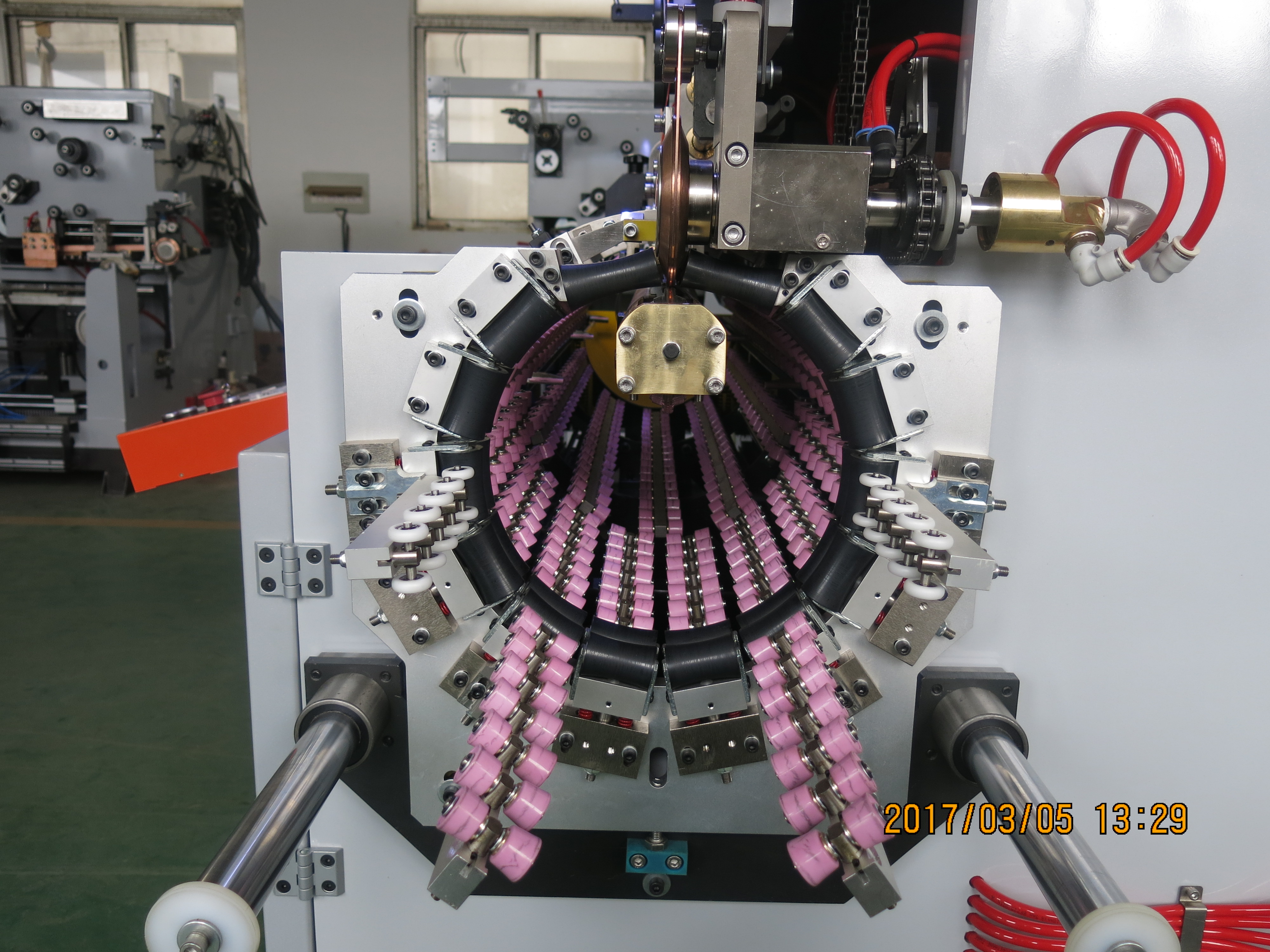

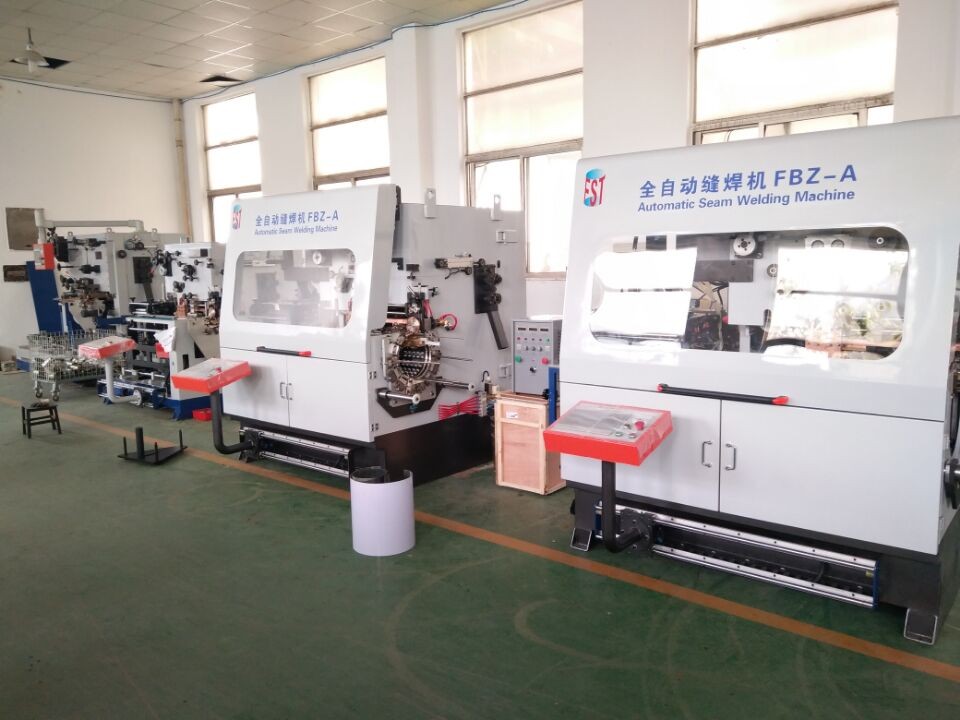

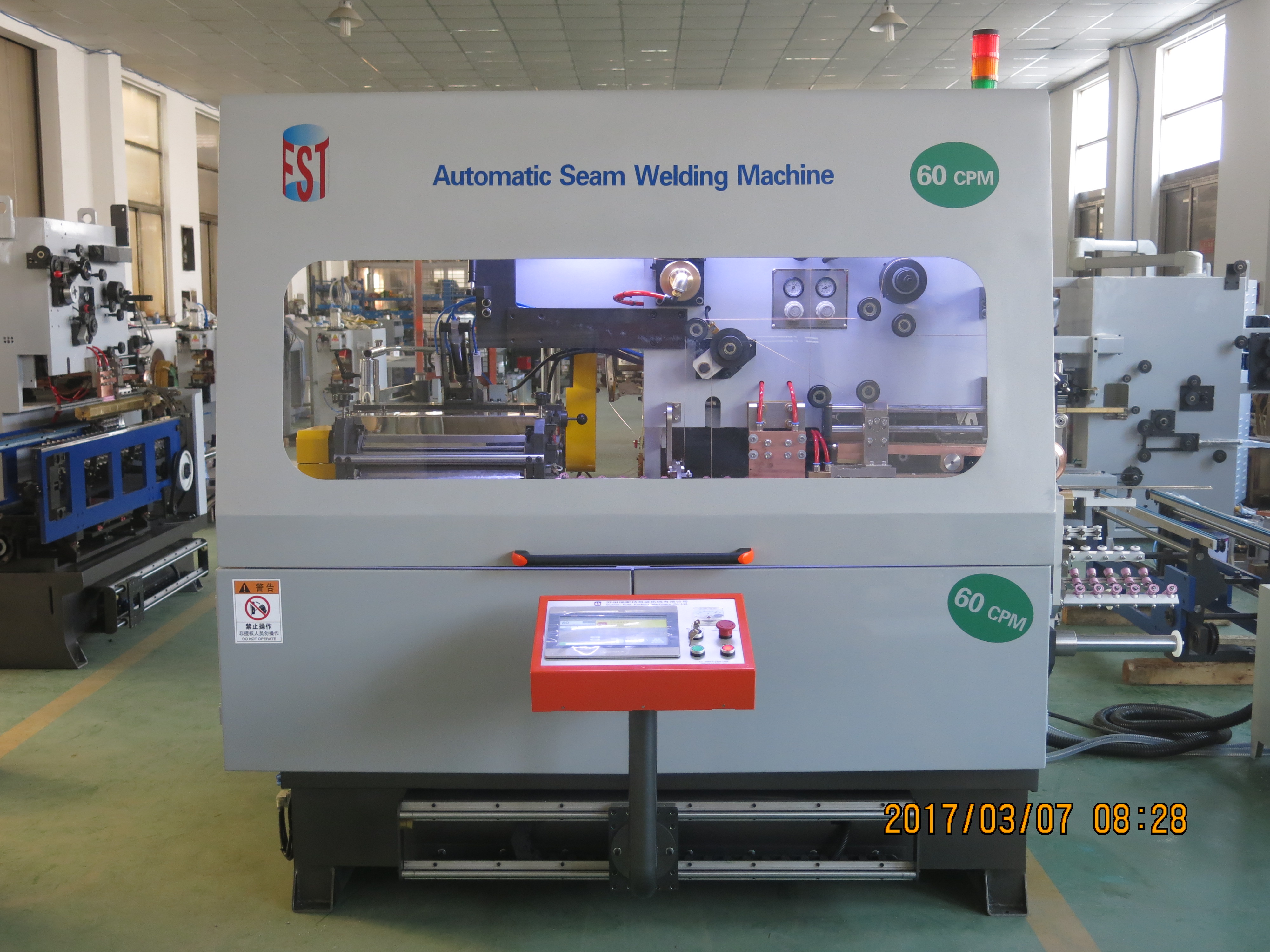

Details Images

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
